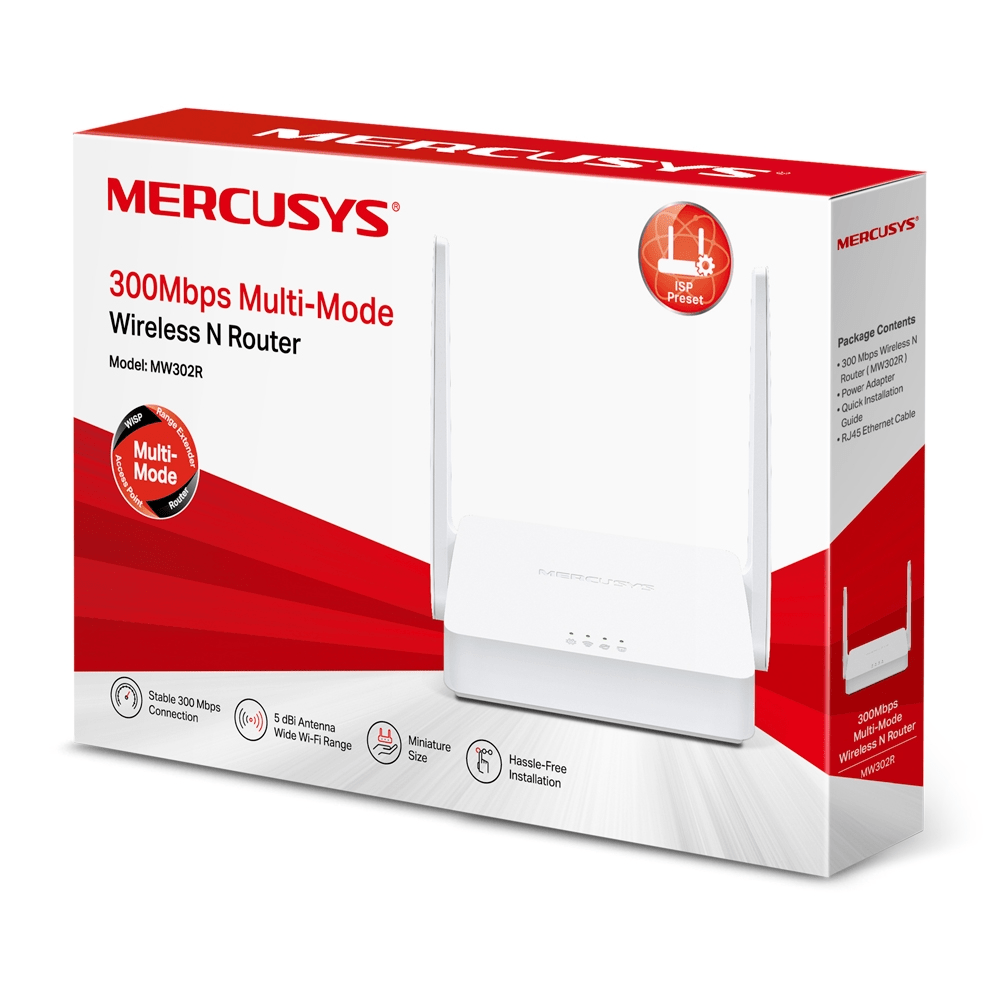

Mercusys MW302R 300Mbps Multi-Mode Wireless N Router

MERCUSYS MW302R 300MBPS MULTI-MODE  WIRELESS N ROUTER PRODUCT DESCRIPTION:

• Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps

• Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home

• Multi-Mode — Four modes in one device to satisfy all application scenarios

• Easy installation — Intuitive webpage guides you through the setup process in minutes

• Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access

• Compatible with IPv6 (Internet Protocol version 6)

Fast Daily Wi-Fi

The MW302R provides fast, stable Wi-Fi for all your connected devices. Wireless speeds of up to 300 Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.

4 Modes in 1

Router Mode

Creates a wireless network for all your WiFi devices

Range Extender Mode

Extends your existing Wi-Fi

Access Point Mode

Extends a wired network and makes it wireless

WISP Mode

Wirelessly connects to the ISP network in areas without wired service

Broader Coverage

Two external 5 dBi antennas powered with advanced antenna technology provide broader wireless coverage and signal intensity throughout large homes or offices, making weak connections a thing of the past.

Easy Installation

No need for complicated configuration. Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes.

Parental Controls

Supervise children or staff by limiting access. Manage when and how connected devices can access the internet.

Guest Network

Allow guests to join your Wi-Fi network while protecting your privacy. Making sharing easy and maintaining security.

QoS

Priorities devices to get better
performance when needed.

SPECIFICATION:

Wireless

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4-2.4835GHz

Signal Rate

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

Transmission Power

<20dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control, Local Management, Remote Management

DHCP

Server

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Protocols

IPv4, IPv6

Guest Network

2.4GHz Guest Network

Hardware

Dimensions (W X D X H)

114 mm × 94 mm × 26 mm

Button

Reset Button

External Power Supply

5V/0.6A

Antenna Type

2 * 5dBi

Ethernet Ports

2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port

Others

Package Contents

300Mbps Wireless N Router ( MW302R )
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
