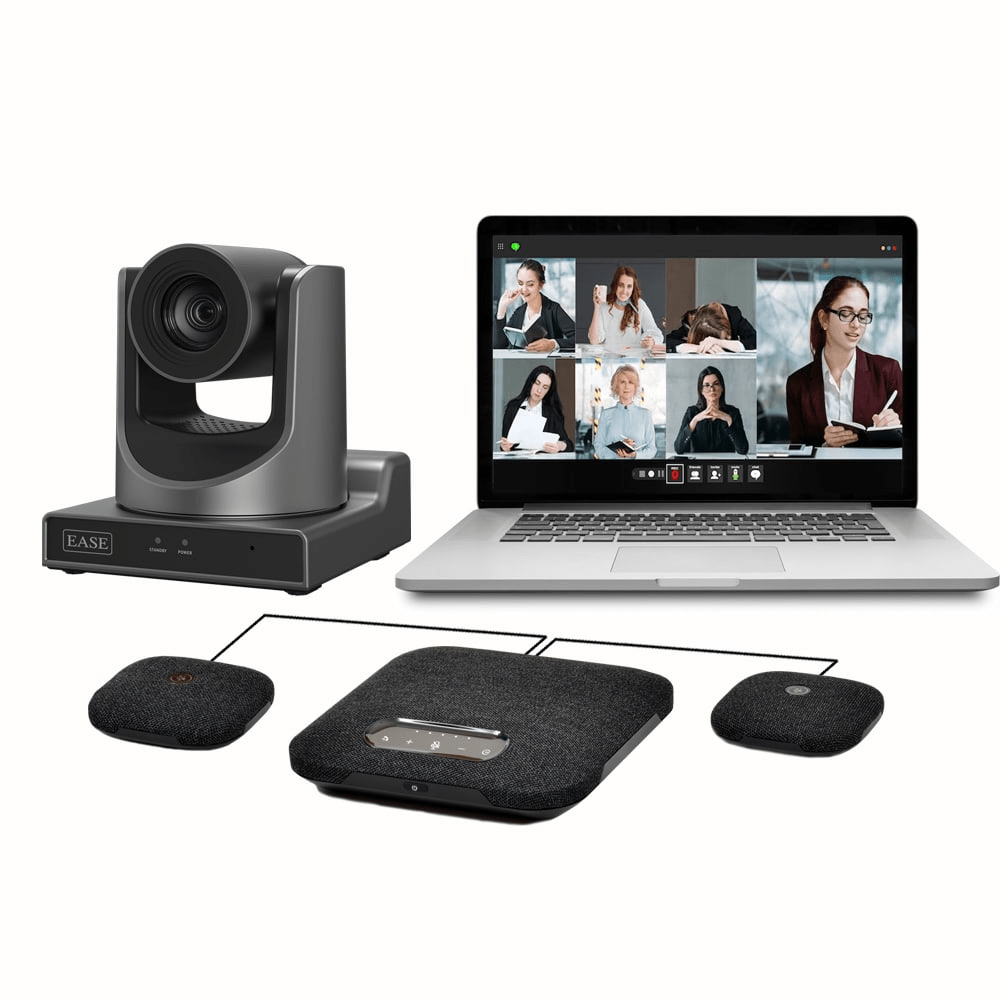

Ease GroupSync Pro

EASE GROUPSYNC PRO PRODUCT DESCRIPTION:

Video/Cam Specifications:

• Signal System: Supports 1080p/60, 1080i/50, 720p/60, and more.
• Sensor: 1/2.8 inches CMOS with 2.07 Megapixels.
• Scanning Mode: Progressive.
• Focal Length: 20x zoom, f4.42mm — 88.5mm, F1.8 — F2.8.
• Minimum Illumination: 0.5 Lux @ (F2.0, AGC ON).
• Shutter: 1/30s — 1/10000s.
• White Balance: Auto, One Push, Manual, VAR.
• Backlight Compensation: Supported.
• Digital Noise Reduction: 2D & 3D Digital Noise Reduction.
• Signal-to-Noise Ratio (SNR): 55dB.
• Horizontal FOV: 60.7° — 3.36°, Vertical FOV: 34.1° — 1.89°.
• Pan Angle: ±170°, Tilt Angle: -30° — +90°.
• Pan Speed: 1.7° — 100°/s, Tilt Speed: 1.7° — 69.9°/s.
• Image Flip: Supported, Image Freeze: Supported.
• Preset Positions: 255, Preset Accuracy: 0.1°.

Cam USB Features:

• Operating System Supported: Windows 7 and above, mac OS 10.10 and above, Linux (UVC support).
• Hardware Requirements: 2.4 GHz Intel Core 2 Duo CPU or higher, 2 GB RAM or more, USB 2.0 interface.
• Color System / Compression: YUY2 / H.264 / MJPEG.
• Audio Output Support: HDMI, USB, LAN, SDI, Line Out, etc.

Cam Network Features:

• Video Compression: H.264 / H.265.
• Video Stream: First Stream, Second Stream.
• First Stream Resolution: 1920×1080, 1280×720, 1024×576, etc.
• Second Stream Resolution: 1280×720, 1024×576, 720×576, etc.
• Video Bit Rate: 32Kbps — 102400Kbps.
• Bit Rate Control: VBR, CBR.
• Frame Rate: 1fps — 60fps.
• Audio Compression: AAC.
• Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps.
• Protocols: NDI’IHB, NDI’IHX2, TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, SRT, GB/T 28181, etc.

Cam Interfaces:

• USB Interface: 1 x USB3.0, Type-A.
• HD Output: 1x HDMI (Version 1.3), 1x 3G-SDI (BNC, 800mVp-p, 750, as per SMPTE 424M standard).
• Network Interface: 1x RJ45 (10M/100M/1000M adaptive Ethernet, Support POE).
• Audio Interface: Built-in dual microphones, 1x Line in (3.5mm Jack), 1x Line Out (3.5mm Jack).
• Control Interface: 1x RS485 (2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P), 1x RS232 in (8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P), 1x RS232 OUT (8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only).
• Power Interface: JEITA type (DC IN 12V).

Mic/Speakerphone Specifications

• Microphone Array: Built-in 4 Microphone Array.
• Voice Pickup Range: Up to 8 meters.
• Speaker: Built-in Hi-Fi Speaker.
• DSP Audio: Acoustic echo cancellation and noise reduction, Dynamic speech enhancement.
• Extension Microphone: 2 x Extension microphone.
• Power Supply: DC 5V.
• Battery: Built-in 3000mAh battery.
• Product Size: 180 x 180 x 43mm.
• Package Size: 230 x 230 x 80mm.
• 1.5 meters Type-C Cable (Extendable)
• 2 meters extension microphone
