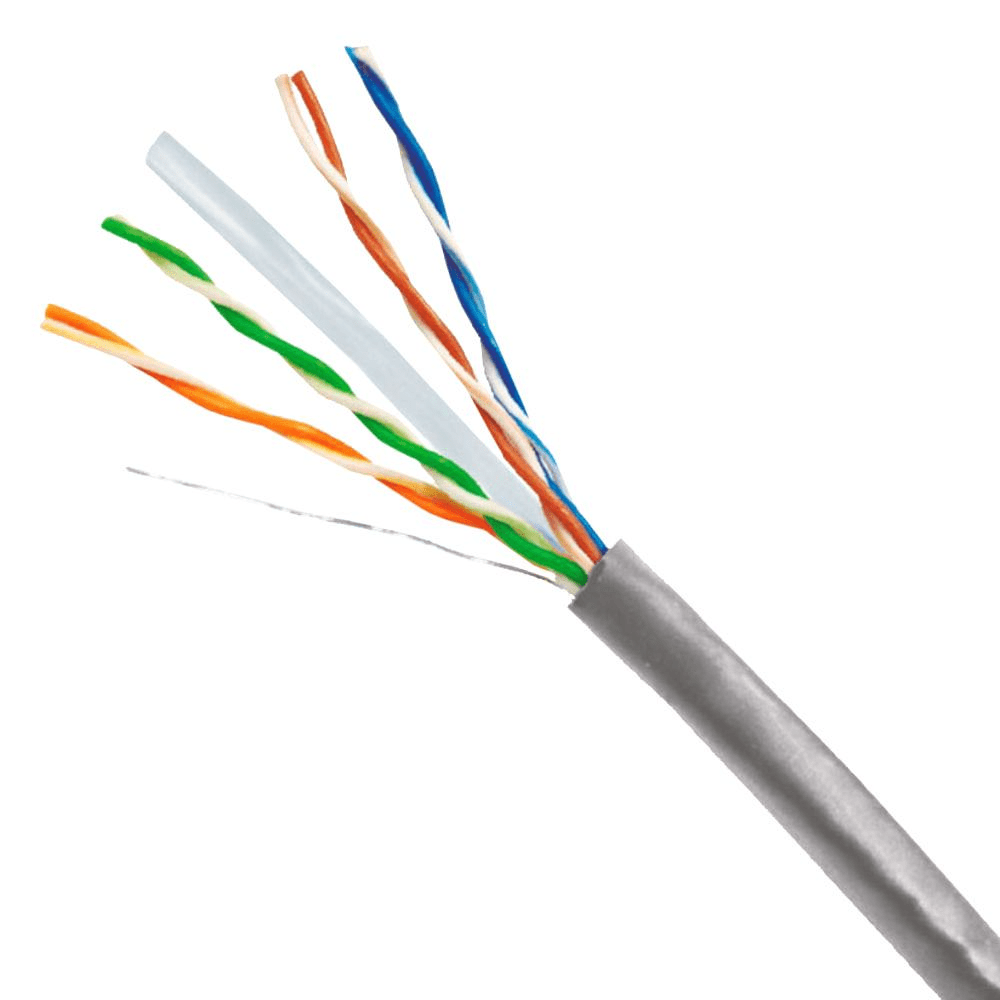

Hikvision DS-1LN6-UE-W 305m CAT6 Network Cable

HIKVISION DS-1LN6-UE-W 305M CAT6 NETWORK CABLE PRODUCT DESCRIPTION:

• Full diameter 305 m CAT6 network cable

• Core diameter: 0.53mm

• Excellent transmission performance using solid copper

• Quality verified by Fluke test

• Guaranteed long PoE transmission distance

• Great PVC flame resistance.

SPECIFICATION:

• General

• Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,

• PackingWooden Tray & Carton

• Carton DimensionPer request

• Packing Length305±1.5m

• Rip-CordYes

• Drain WireNo

• Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

• Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

• Conductor

• MaterialSOLID-Bare Copper,Content 99.95%,

• Nom.O.D.(Mm)0.530±0.005

• Insulation

• MaterialHDPE

• Diameter0.95±0.05mm

• Sheath

• Thickness0.55±0.05 mm

• External O.D.5.8±0.4mm

• SurfaceClean,Frap,Satiation

• MaterialPVC(complies RoHS), CM

• ColorWhite RAL9003

• Surface Printing

• Letter Height3.0±0.3mm

• ColorBlack

• Print Error & Space≤±0.5%，1m
