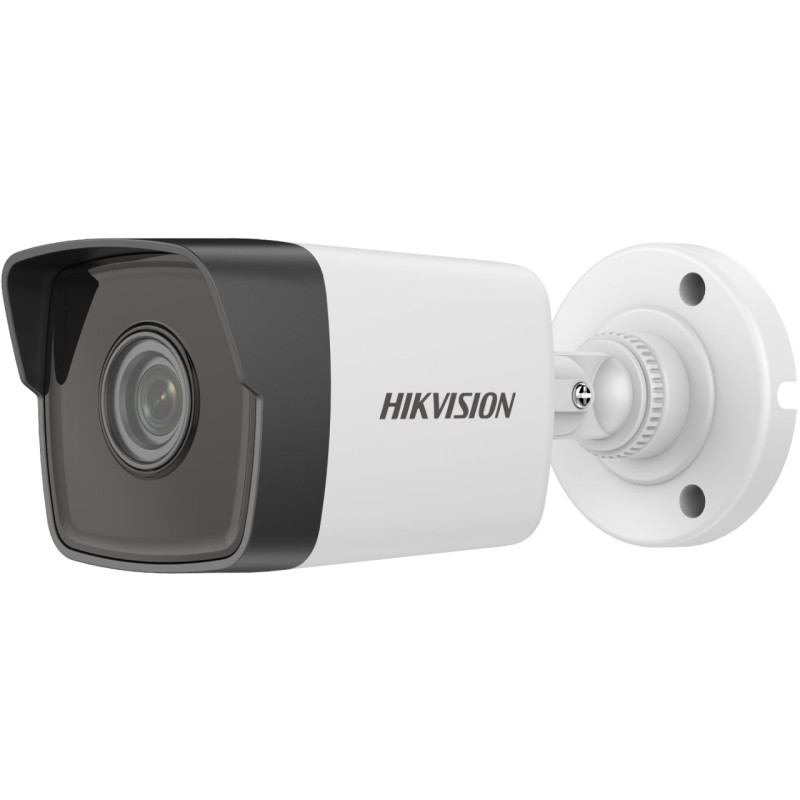

Hikvision DS-2CD1043G0-I 4MP Bullet Network Camera

HIKVISION DS-2CD1043G0-I 4MP BULLET NETWORK CAMERA PRODUCT DESCRIPTION:

• High quality imaging with 4 MP resolution

• Efficient H.265+ compression technology

• Clear imaging even with strong back lighting due to 120 dB WDR

• Water and dust resistant (IP67)

• EXIR 2.0: advanced infrared technology with long IR range

• Built-in microphone for real-time audio security

SPECIFICATION:

• Camera

• Image Sensor1/3" progressive scan CMOS

• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s

• Slow ShutterYes

• Wide Dynamic Range120 dB

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

• Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

  4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

• Lens MountM12

• FocusFixed

• ApertureF2.0

• Illuminator

• IR Wavelength850 nm

• IR RangeUp to 30 m

• Video

• Max. Resolution2560 × 1440

• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain Profile

• H.264+Main stream supports

• H.265+Main stream supports

• Region Of Interest (ROI)1 fixed region for main stream

• Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

• Audio Sampling Rate8 kHz/16 kHz

• Environment Noise FilteringYes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

• Simultaneous Live ViewUp to 6 channels

• APIOpen Network Video Interface, ISAPI

• User/HostUp to 32 users. 3 levels: administrator, operator and user

• Network Storage-UF: NAS (NFS, SMB/CIFS), ANR

• ClientiVMS-4200, Hik-Connect

• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night

• Image EnhancementBLC, 3D DNR

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB

• Built-In Microphone-UF: Yes

• Hardware Reset-UF: Yes

• Event

• Basic EventMotion detection, video tampering, exception

• General

• Linkage Method

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

• Camera MaterialMetal & Plastic

• Camera Dimension177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")

• Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

• Camera WeightApprox. 270 g (0.6 lb.)

• With Package WeightApprox. 490 g (1.1 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Web Client LanguageEnglish, Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Firmware VersionV5.5.120

• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power InterfaceØ5.5 mm coaxial power plug
