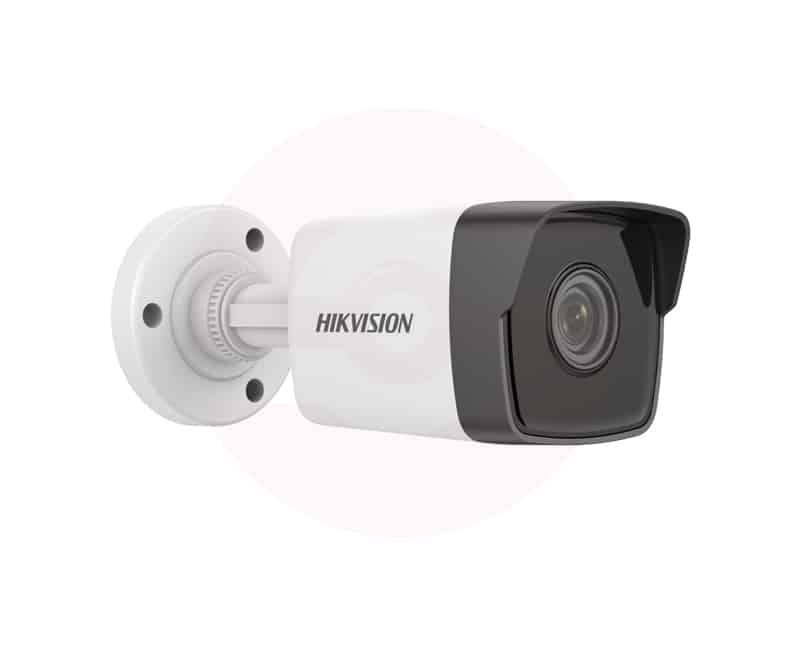

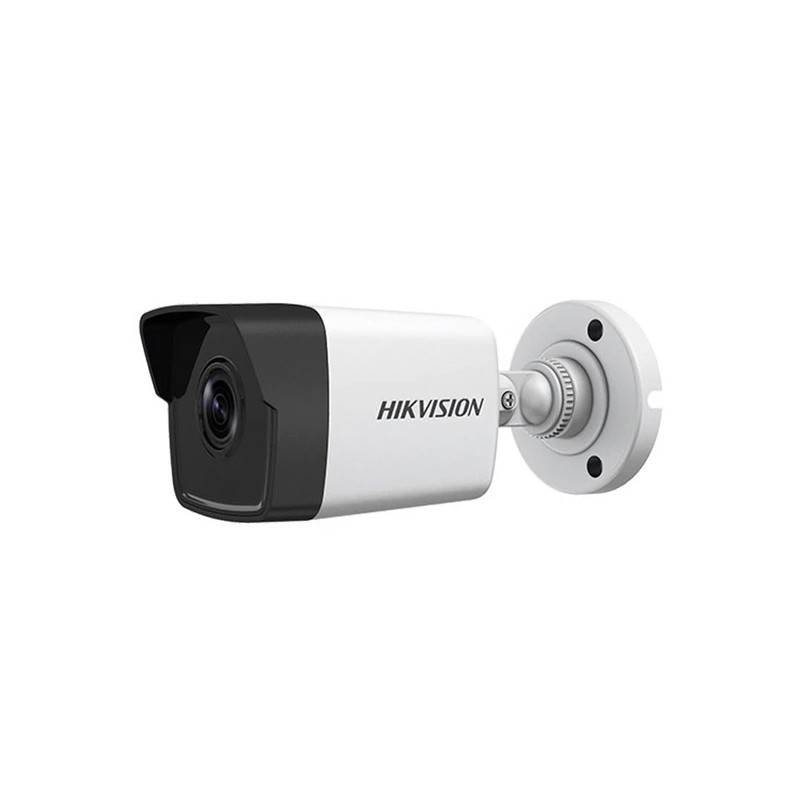

Hikvision DS-2CD1053G0-I 5 MP Network Camera

HIKVISION DS-2CD1053G0-I 5 MP NETWORK CAMERA PRODUCT DESCRIPTION:

• High quality imaging with 5 MP resolution

• Efficient H.265+ compression technology

• Clear imaging even with strong back lighting due to 120 dB WDR

• Water and dust resistant (IP67)

• EXIR 2.0: advanced infrared technology with long IR range

• -UF: Built-in microphone for real-time audio security

SPECIFICATION:

• Camera

• Image Sensor1/2.7" Progressive Scan CMOS

• Max. Resolution2560 × 1920

• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

• Shutter Speed1/3 s to 1/100,000 s

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

  4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

• Lens MountM12

• Iris TypeFixed

• ApertureF2.0

• Illuminator

• Supplement Light TypeIR

• Supplement Light RangeUp to 30 m

• IR Wavelength850 nm

• Video

• Main Stream

  50 Hz: 20 fps (2560 × 1920)

  25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1920)

  30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain profile

• Region Of Interest (ROI)1 fixed region for main stream

• Audio

• Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

• Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

• Audio Sampling Rate-UF: 8 kHz/16 kHz

• Environment Noise Filtering-UF: Yes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

• Simultaneous Live ViewUp to 6 channels

• APIOpen Network Video Interface, ISAPI

• User/Host

  Up to 32 users. 3 levels: administrator, operator and user

  3 user levels: administrator, operator, and user

• ClientiVMS-4200, Hik-Connect

• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• Day/Night SwitchAuto, Schedule, Day, Night

• Wide Dynamic Range (WDR)120 dB

• Image EnhancementBLC, 3D DNR

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB

• Built-In Microphone-UF: Yes

• Reset Key-UF: Yes

• Event

• Basic EventMotion detection, video tampering, exception

• Linkage

  Upload to FTP, notify surveillance center, send email

  -UF also supports: upload to memory card, trigger recording, trigger capture

• General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension177.6 mm × 67.8 mm ×66.2 mm (7" × 2.7" × 2.6")

• Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

• WeightApprox. 270 g (0.6 lb.)

• With Package WeightApprox. 481 g (1.1 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• LanguageEnglish, Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Approval

• EMC

  FCC SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

  RCM: AS/NZS CISPR 32: 2015;

  IC VoC: ICES-003: Issue 7;

  KC: KN 32: 2015, KN 35: 2015

• Safety

  UL: UL 62368-1;

  CB: IEC 62368-1:2014+A11;

  CE-LVD: EN 62368-1:2014/A11:2017;

  BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
