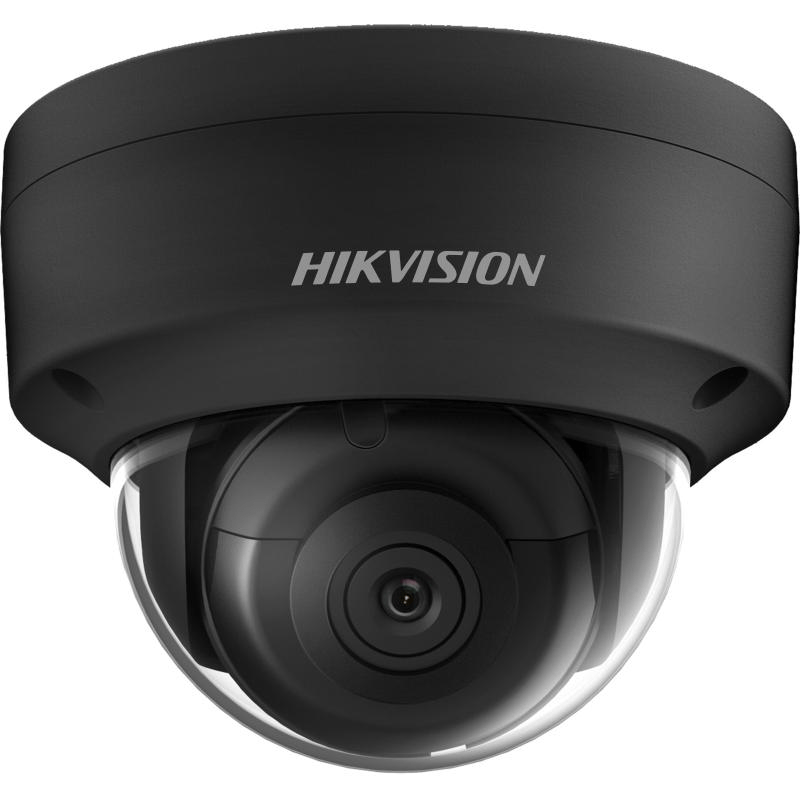

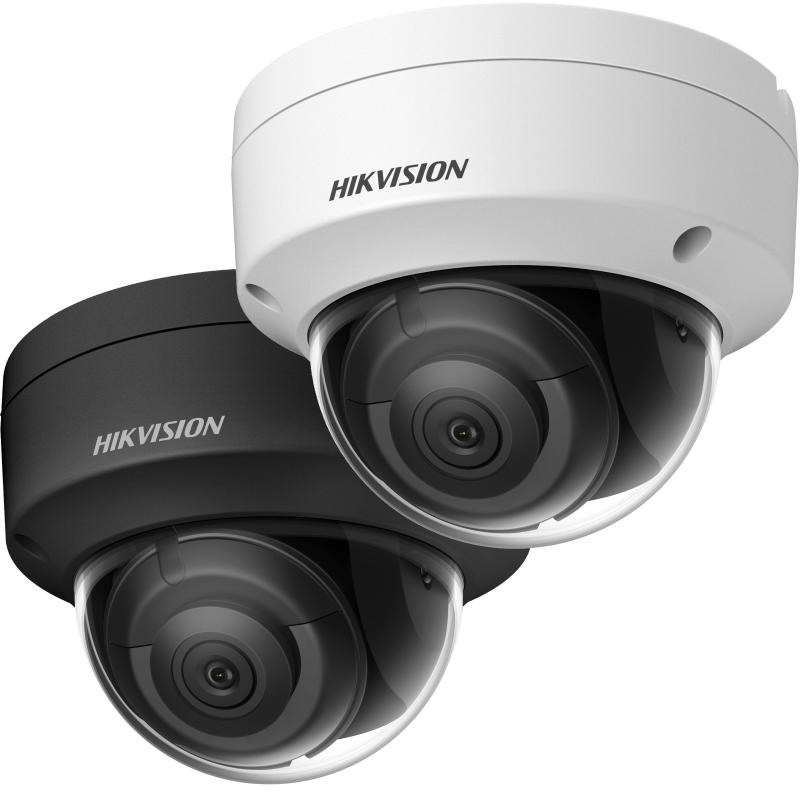

Hikvision DS-2CD2143G2-I 4 MP Network Camera

HIKVISION DS-2CD2143G2-I 4 MP NETWORK CAMERA PRODUCT DESCRIPTION:

• High quality imaging with 4 MP resolution

• Clear imaging against strong backlight due to 120 dB WDR technology

• Efficient H.265+ compression technology

• Water and dust resistant (IP67) and vandal resistant (IK10)

• Focus on human and vehicle targets classification based on deep learning

SPECIFICATION:

• Camera

• Image Sensor1/3" Progressive Scan CMOS

• Max. Resolution2688 × 1520

• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

• Shutter Time1/3 s to 1/100,000 s

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens

• Lens TypeFixed focal length, 2.8 and 4 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°

  4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

• Lens MountM12

• Iris TypeFixed

• ApertureF1.6

• DORI

• DORI

  2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m

  4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

• Illuminator

• Supplement Light TypeIR

• Supplement Light RangeUp to 30 m

• Smart Supplement LightYes

• IR Wavelength850 nm

• Video

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain Profile

• Bit Rate ControlCBR/VBR

• Scalable Video Coding (SVC)Yes

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Bit Rate-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)

• Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Environment Noise Filtering-S: Yes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets

• Simultaneous Live ViewUp to 6 channels

• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK

• User/HostUp to 32 users. 3 user levels: administrator, operator and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)

• ClientiVMS-4200, Hik-Connect, Hik-Central

• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Image Parameters SwitchYes

• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Day/Night SwitchDay, Night, Auto, Schedule

• Wide Dynamic Range (WDR)120 dB

• SNR≥ 52 dB

• Image EnhancementBLC, HLC, 3D DNR

• Interface

• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

• On-Board StorageBuilt-in microSD, up to 512 GB

• Audio-S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)

• Reset KeyYes

• Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception

• Smart Event

  Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

  Face detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

• General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• DimensionØ110.8 × 84.7 mm (Ø4.4″ × 3.3″)

• Package Dimension134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)

• WeightApprox. 530 g (1.2 lb.)

• With Package WeightApprox. 720 g (1.6 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

• Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
