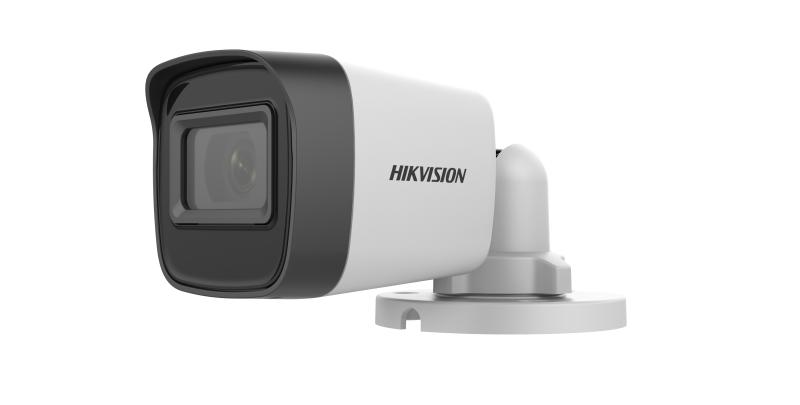

Hikvision DS-2CE16D0T-EXIPF 2 MP Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 2.8 mm, 3.6 mm fixed lens
• Up to 20 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

SPECIFICATION:

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• Lens
• Lens Type2.8 mm, 3.6 mm Fixed Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°

  3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

• Lens MountM12

• Illuminator
• Supplement Light RangeUp to 20 m

• Image
• Frame Rate

  TVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto
• Image EnhancementDWDR, BLC, Global
• Noise Reduction2D DNR
• Image SettingsBrightness, Mirror, Smart IR, Sharpness, AGC

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• LanguageEnglish
• Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• MaterialPlastic
• CommunicationHIKVISION-C
• Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")
• WeightApprox. 145 g (0.32 lb.)
• Power12 VDC ± 25%, Max. 3.3 W

• Approval
• ProtectionIP67
