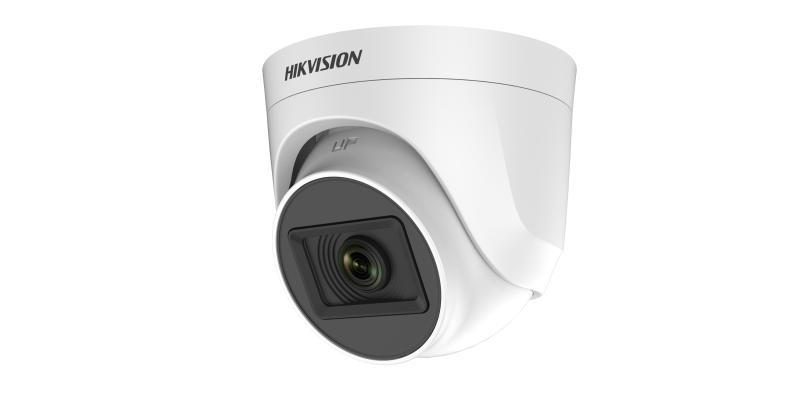

Hikvision DS-2CE76H0T-ITPF 5 MP Turret Camera

HIKVISION DS-2CE76H0T-ITPF 5 MP TURRET CAMERA PRODUCT DESCRIPTION:

• 5 MP turret camera
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

SPECIFICATION:

• Camera
• Image Sensor5 MP CMOS image sensor
• Max. Resolution2560 (H) × 1944 (V)
• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°

  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialPlastic
• DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
• WeightApprox. 143 g (0.32 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ±25%
• Consumption

  Max. 4.3 W

• IR RangeUp to 20 m
