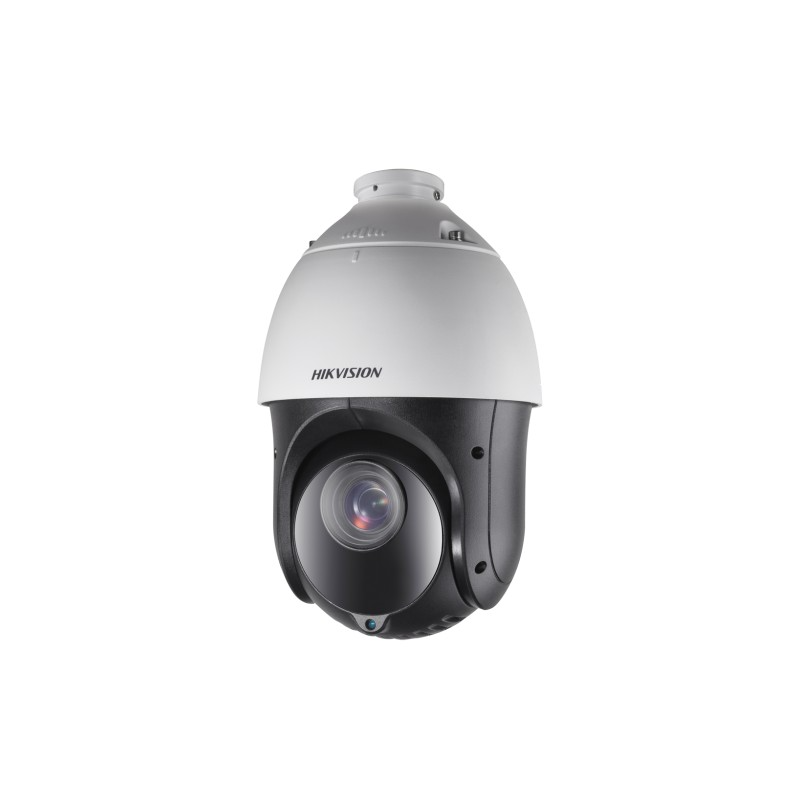

Hikvision DS-2DE4225IW-DE 2MP Dark Fighter Camera

HIKVISION DS-2DE4225IW-DE 2MP DARKFIGHTER CAMERA PRODUCT DESCRIPTION:

1/2.8" progressive scan CMOS



High quality imaging with 2 MP resolution



Excellent low-light performance with powered-by-DarkFighter technology



25× optical zoom and 16× digital zoom provide close up views over expansive areas



WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus



Expansive night view with up to 100 m IR distance



Support H.265+/H.265 video compression

SPECIFICATION:

Camera

Image Sensor1/2.8" progressive scan CMOS



Min. Illumination0 Lux with IR;color: 0.005Lux @ (F1.6，AGC ON) ;B/W: 0.001Lux @ (F1.6, AGC ON)



Shutter Speed1 s to 1/30,000 s



Slow Shutteryes



Focussemi-auto;manual;auto



Day & NightICR



Day/Night Switchday, night, auto, scheduled-switch



BLCyes



WDR120 dB WDR



HLCyes



3D DNRyes



Defogyes



EISno



Regional Exposureyes



Regional Focusyes



Image Settingssaturation;brightness;contrast;sharpness



Image Parameters Switchyes



White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB



Digital Zoom16x



Optical Zoom25x



Privacy Maskup to 24 masks;mask color configurable



SNR＞52dB



Lens



Focal Length4.8 mm to 120 mm, 25× Optical



Zoom Speedapprox. 3.6 s



FOV

Horizontal field of view: 57.6° to 2.5° (wide-tele),

Vertical field of view: 34.4° to 1.4° (wide-tele),

Diagonal field of view: 64.5° to 2.9° (wide-tele)



ApertureF1.6



Illuminator



IR Distance100 m



PTZ



Movement Range (Pan)360°



Movement Range (Tilt)-15° to 90° (auto flip)



Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s



Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s



Proportional Zoomyes



Presets300



Patrol Scan8 patrols, up to 32 presets for each patrol



Pattern Scan4 pattern scans



Power-Off Memoryyes



Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan



3D Positioningyes



PTZ Status Displayyes



Preset Freezingyes



Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output



Video



Max. Resolution1920 × 1080



Stream Typemain stream;sub-stream;third stream



Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)



Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)



Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)



Video CompressionH.265;H.264;MJPEG



Video Bit Rate32 kbps to 16384 kbps



H.264 Typebaseline profile;main profile;high profile



H.265 Typemain profile



H.264+yes



H.265+yes



SVCyes



ROIfixed region;main stream, sub-stream and third stream respectively support eight fixed areas



Audio



Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM



Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps



Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz;PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz



Environment Noise Filteringyes



Smart Features



Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception



Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection;face detection



Smart RecordANR;Dual-VCA



Alarm Linkagememory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording



Network



ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,ISUP



Network StorageNAS (NFS, SMB/ CIFS)



APIISAPI;Hikvision SDK;Third-party management platform;Open-ended API;Hik-Connect;ISUP;Open Network Video Interface;CGI



Simultaneous Live View20



User/Host32



Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter



ClientiVMS-4200;Hik-Connect



Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+



Interface



Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port



On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB



Alarm Input1 alarm input



Alarm Output1 alarm output



Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%



Audio Output1 audio output, line level, impedance: 600 Ω



General



Power12 VDC;PoE (802.3at)



Power Consumption And CurrentMax. 18 W, including max. 1.6 W for heater and 9 W for IR



Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH



Resetyes



Demistyes



MaterialADC12



DimensionsØ 164.5 mm × 290 mm (Ø 6.48" × 11.42")



WeightApprox. 2 kg (4.41 lb.)



Approval



ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection.
