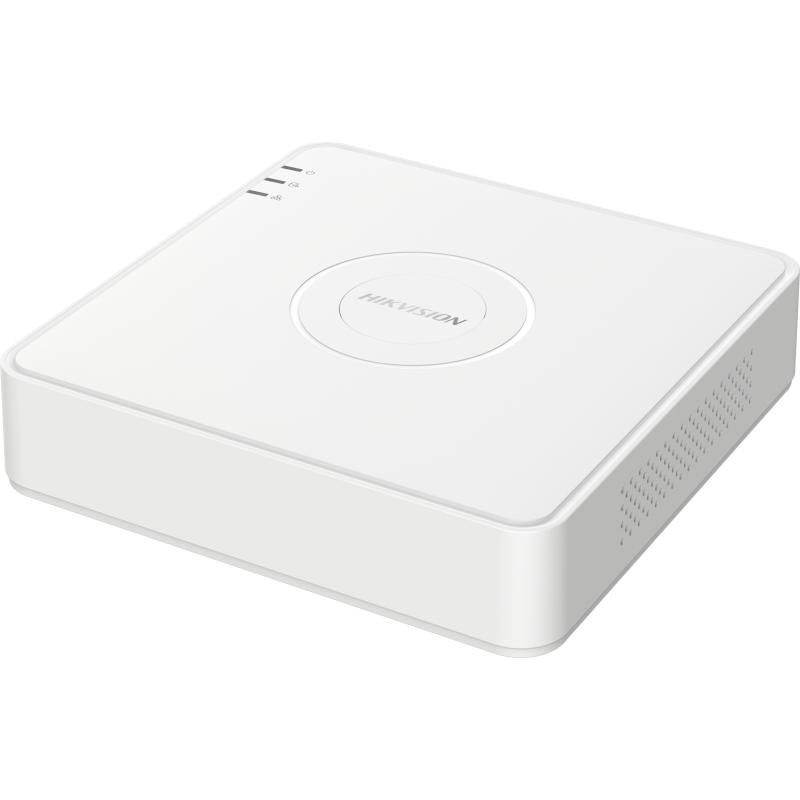

Hikvision DS-7104HGHI-K1 DVR

HIKVISION DS-7104HGHI-K1 DVR PRODUCT DESCRIPTION:

• Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

  When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  4CIF/CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711u

• Audio Bitrate64 Kbps

• Video And Audio

• IP Video Input

  1-ch (up to 5-ch)

  Up to 1080p resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  HDMI/VGA simultaneous output

• CVBS InputSupport

• Synchronous Playback4-ch

• AHD Input1080p25, 1080p30, 720p25, 720p30

• HDCVI Input1080p25, 1080p30, 720p25, 720p30

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Two-Way AudioReuse the first audio input

• Network

• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Remote Connection32

• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 4 TB capacity for each disk

• USB InterfaceRear panel: 2 × USB 2.0

• Alarm In/OutN/A

• General

• Power Supply12 VDC, 1.5 A

• Consumption≤ 16 W

• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

• ≤ 0.8 kg (1.8 lb)
