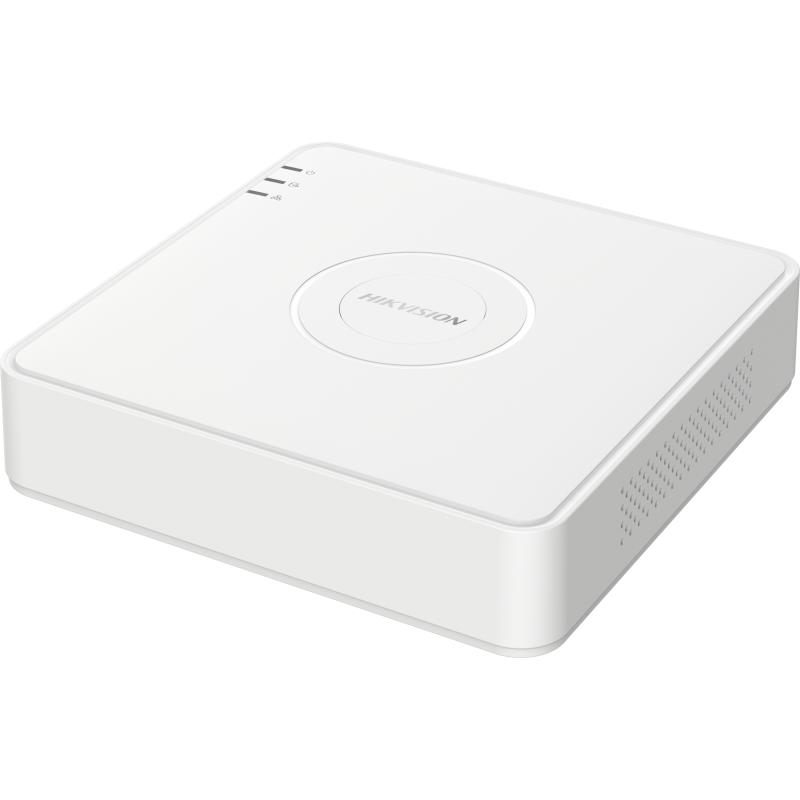

Hikvision DS-7108HGHI-K1 DVR

HIKVISION DS-7108HGHI-K1DVR PRODUCT DESCRIPTION:

Hikvision 8-ch 1080p Mini 1U H.265 DVR, 8 channels and 1 HDD mini size DVR, Efficient H.265 pro+ compression technology, Encoding ability up to 1080p @ 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 10-ch IP camera on Enhanced IP Mode, Video & Audio Stream Type, IP Video Input 2-ch (up to 10-ch) Support H.265+/H.265/H.264+/H.264 IP cameras, 12 VDC.

Specification:

• Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

  When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 720p stream access:

  720p/WD1/4CIF/VGA/CIF@15 fps;

  For SD stream access:

  WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@15 fps

  Sub-stream:

  CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 4 Mbps

• Stream Type: Video, Video & Audio

• Audio Compression: G.711u

• Audio Bitrate: 64 Kbps

• Video And Audio

• IP Video Input

  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• AHD Input: 1080p25, 1080p30, 720p25, 720p30

• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

• CVBS Input: Support

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  HDMI/VGA simultaneous output

• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio: Reuse the first audio input

• Synchronous Playback8-ch

• Network

• Remote Connection: 64

• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface

• SATA: 1 SATA interface

• Capacity: Up to 4 TB capacity for each disk

• USB Interface: Rear panel: 2 × USB 2.0

• Alarm In/Out: N/A

• General

• Power Supply: 12 VDC, 1.5 A

• Consumption: ≤ 17 W

• Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)

• Working Humidity: 10% to 90%

• Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

• ≤ 1 kg (2.2 lb)
