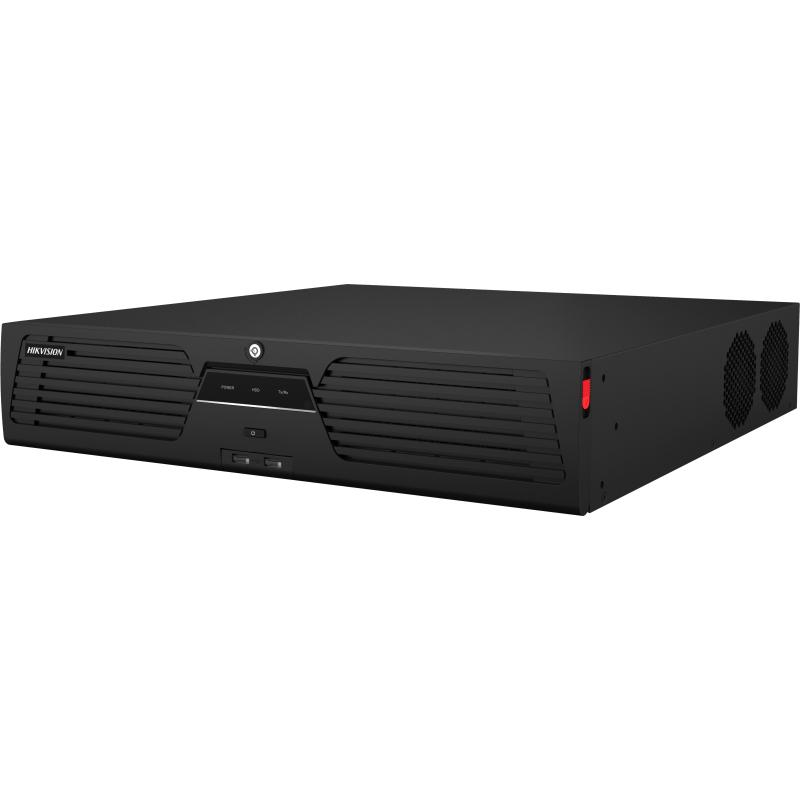

Hikvision DS-9664NI-M8 64-ch 2U 4K NVR

HIKVISION DS-9664NI-M8 64CH 2U 4K NVR PRODUCT DESCRIPTION:

• Up to 64-ch IP camera inputs

• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity

• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth

• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs

• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera

• Advanced streaming technology enables smooth live view in poor network conditions

• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

SPECIFICATION:

• Video And Audio

• IP Video Input64-ch

• Incoming Bandwidth400 Mbps

• Outgoing Bandwidth400 Mbps

• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• HDMI 2 Output

  4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Video Output Mode

  HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

  HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

• Audio Output2-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264

• Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback16-ch

• Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

• Network

• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• RAID

• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

• Auxiliary Interface

• Serial Interface1 RS-485 (full-duplex), 1 RS-232

• SATA8 SATA interfaces

• ESATA1 eSATA interface

• CapacityUp to 16 TB capacity for each disk

• Alarm In/Out16/9

• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

• Ctrl 12V

  Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output

• General

• Power Supply100 to 240 VAC, 50 to 60 Hz

• Consumption≤ 50 W (without HDD)

• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity10% to 90%

• Chassis2U chassis

• Dimension (W × D × H)445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")

• Weight≤ 10 kg (22 lb)

• Certification

• Obtained CertificationCE, FCC

• FCCPart 15 Subpart B, ANSI C63.4-2014

• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
