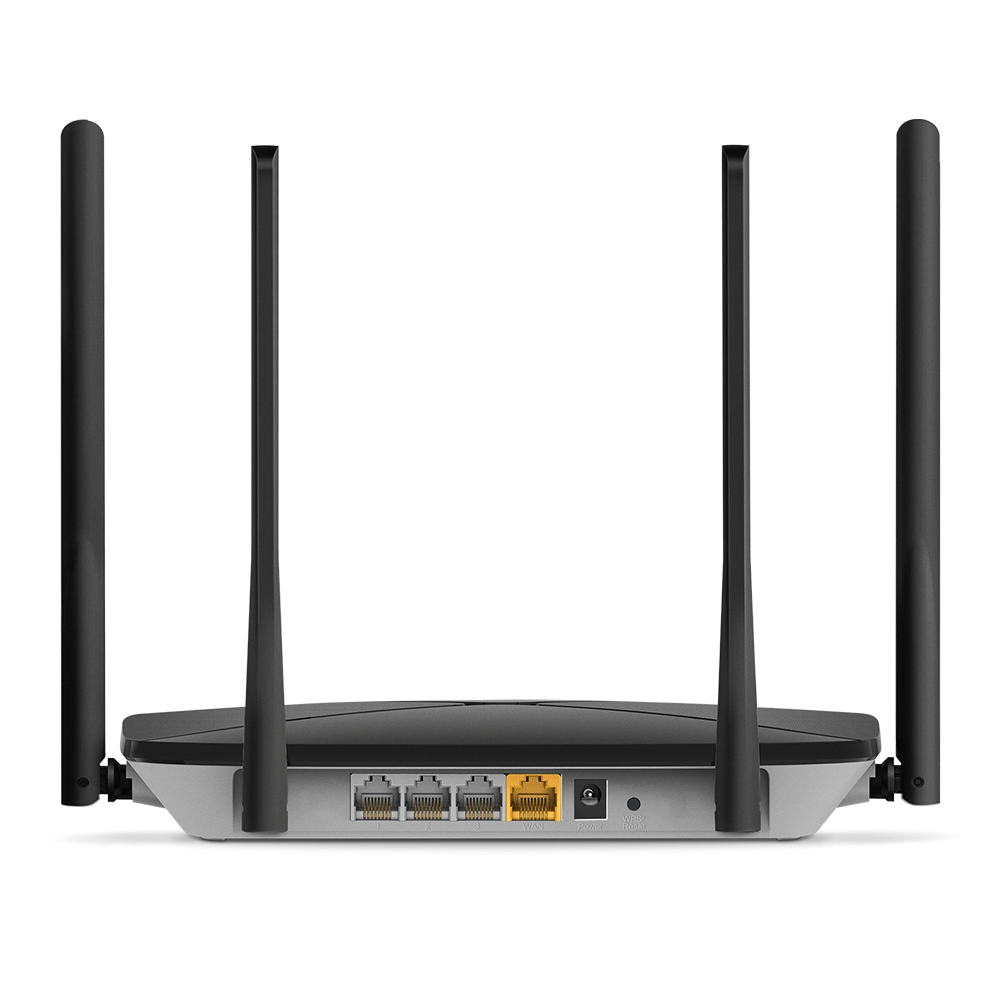

Mercusys AC12G Wireless Router

MERCUSYS AC12G WIRELESS ROUTER PRODUCT DESCRIPTION:

• AC1200 dual band Wi-Fi — speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

• Full gigabit ports — lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more

• Share with up to 60 devices — internet access for multiple streaming simultaneously

• 4 high gain external antennas — powerful wireless coverage throughout your house

• Easy installation — intuitive webpage guides you through the setup process in minutes

1300 Mbps Wi-Fi for endless home entertainment

Internet entertainments arrive at a warp speed with the powerful AC1300 dual band Wi-Fi. For multiple streaming simultaneous, 400 Mbps over the 2.4 GHz band is great for streaming music and shopping online, while 867 Mbps over the 5 GHz band covers bandwidth-intensive tasks like HD streaming and gaming.

Gigabit Speed for Lightning-Fast Surfing

Lightning-fast wired connections are delivered by four built-in gigabit Ethernet ports. Enjoy lag-free gaming, smooth HD video streaming, and high-speed file downloading.

Reliably Connect up to 60 Devices, Simultaneously

Easily share reliable wireless connection with up to 60 wireless devices, such as phones, tablets, and smart home devices, at the same time. Perfectly cover all network needs whether there is a party in the house or a barbecue in the yard.

Strong Signal,Great Coverage

Four external 5 dBi antennas provide users with broader wireless coverage and wireless signal intensity capable of extending throughout your large home or office. Make weak, dropped connections a thing of the past.

SPECIFICATION:

Wireless

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

EU: 2.4-2.5GHz, 5.17-5.25GHz                                                               US: 2.4-2.5GHz, 5.17-5.25GHz, 5.73-5.83GHz

Signal Rate

 400 Mbps at 2.4GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5GHz
• 11a 6M: -96dBm
• 11a 54M: -77dBm
• 11ac 20M MCS8: -72dBm
• 11ac 40M MCS9: -67dBm
• 11ac 80M MCS9: -63dBm
2.4GHz
• 11g 6M: -97dBm
• 11g 54M: -80dBm
• 11n 20M MCS7: -78dBm
• 11n 40M MCS7: -75dBm

Transmission Power

<20dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK / WPA3-Personal

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Software

Management

Access Control
Local Management
Remote Management

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

Dimensions (W X D X H)

8.7 × 5.5 × 1.3 in (222 × 140 × 32 mm)

Interfaces

1× Gigabit WAN Port
3× Gigabit LAN Ports

Button

WPS/Reset Button

External Power Supply

12V/1A

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents

• AC1300 Wi-Fi Router AC12G
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
