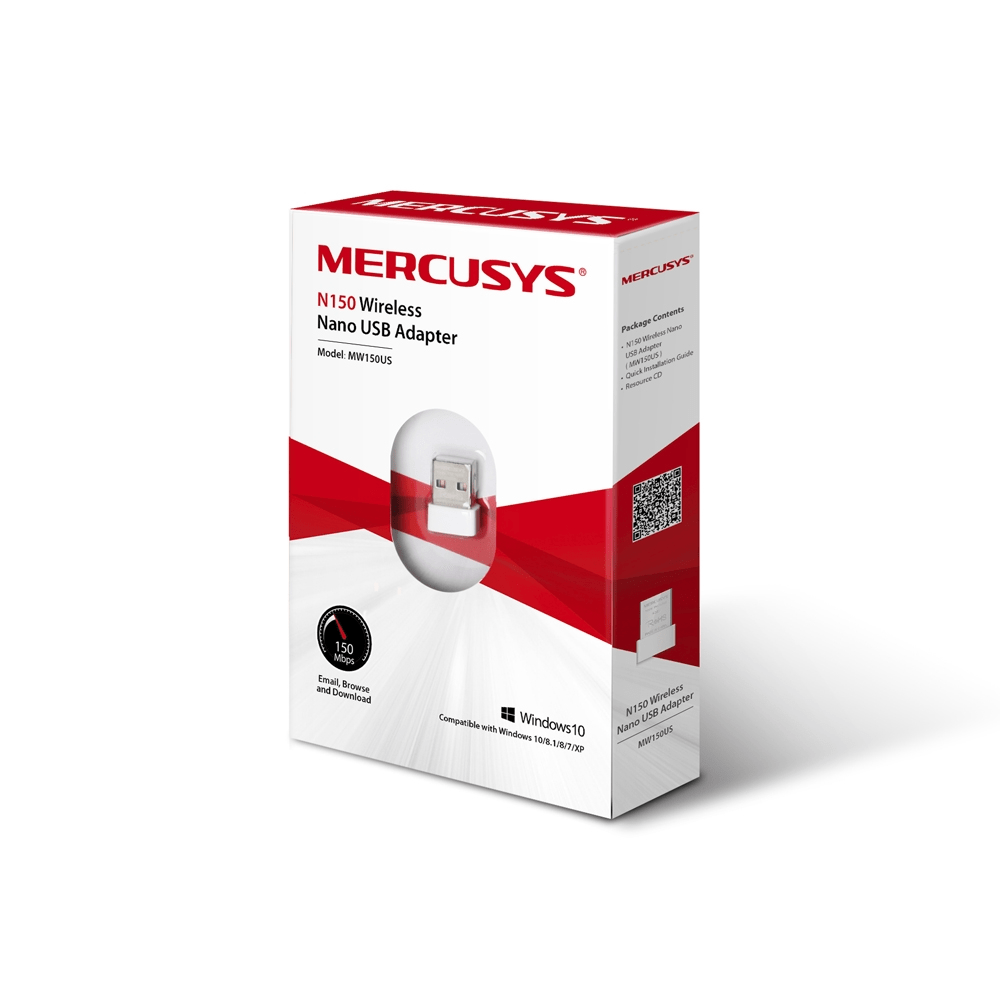

Mercusys MW150US N150 Wireless Nano USB Adapter

MERCUSYS MW150US N150 WIRELESS NANO  USB ADAPTER PRODUCT DESCRIPTION:

• Compact, convenient solution to make your device wireless

• Perfect for essential Internet applications such as web browsing, email, and chatting

• Supports Windows 8.1/8/7/XP (32/64bit)

A Smaller Way to Connect

150Mbps Wireless Nano USB Adapter
MW150 US

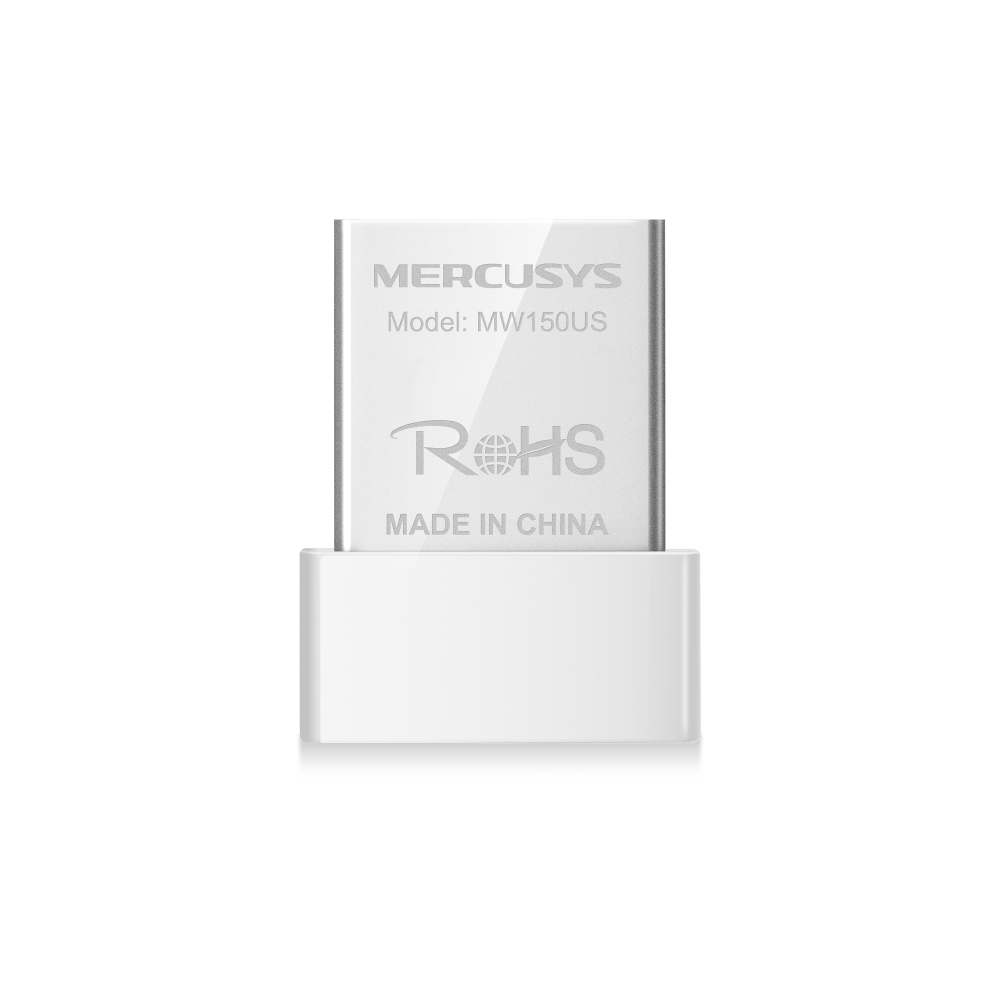

Miniature Size

With its ultra-compact design, the MW150US is extremely convenient for use both at home and on the road. All you need to do is connect this miniature adapter to a computer’s USB port. You can then leave it plugged in without worrying about it falling out or getting lost.

Wireless Network Sharing

The Soft AP function allows the MW150US to immediately turn your PC or laptop into a Wi-Fi hotspot if you are using an existing wired connection. Your mobile devices, including smartphones and tablets, can then connect to a high performance 150Mbps wireless network.

150Mbps Wireless Speed

This miniature adapter can achieve wireless speeds of up to 150Mbps, making it ideal for smooth web surfing, rapid file downloads, and stable Internet calls.

Excellent Compatibility

The MW150US is compatible with Windows 8.1/8/7/XP operation systems, making it easier than ever for your computers to access the Internet.

SPECIFICATION:

Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400 - 2.4835GHz

WiFi Speeds

11n: Up to 150Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 130M: -65dBm@10% PER    • 11M: -85dBm@8% PER
• 108M: -68dBm@10% PER    • 6 M: -88dBm@10% PER
• 54M: -68dBm@10% PER      • 1 M: -90dBm@8% PER

Transmission Power

<20dBm

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions

18.9 × 14.8 × 6.85 mm (0.74 × 0.58 × 0.27 in.)

Interfaces

USB 2.0

Antenna Type

Internal

Others

Certifications

CE, ROHS

Package Contents

N150 Wireless Nano USB Adapter

MW150US

Quick installation guide

Environment

Operating temperature: 0⁰C ~40⁰C (32⁰F ~104⁰F)

Storage temperature: -40⁰C~70⁰C (-40⁰F~158⁰F)

Operating humidity: 10%~ 90% non-condensing

Storage humidity: 5%~90% non-condensing

System Requirements

Windows 11/10/8.1/8/7/XP
