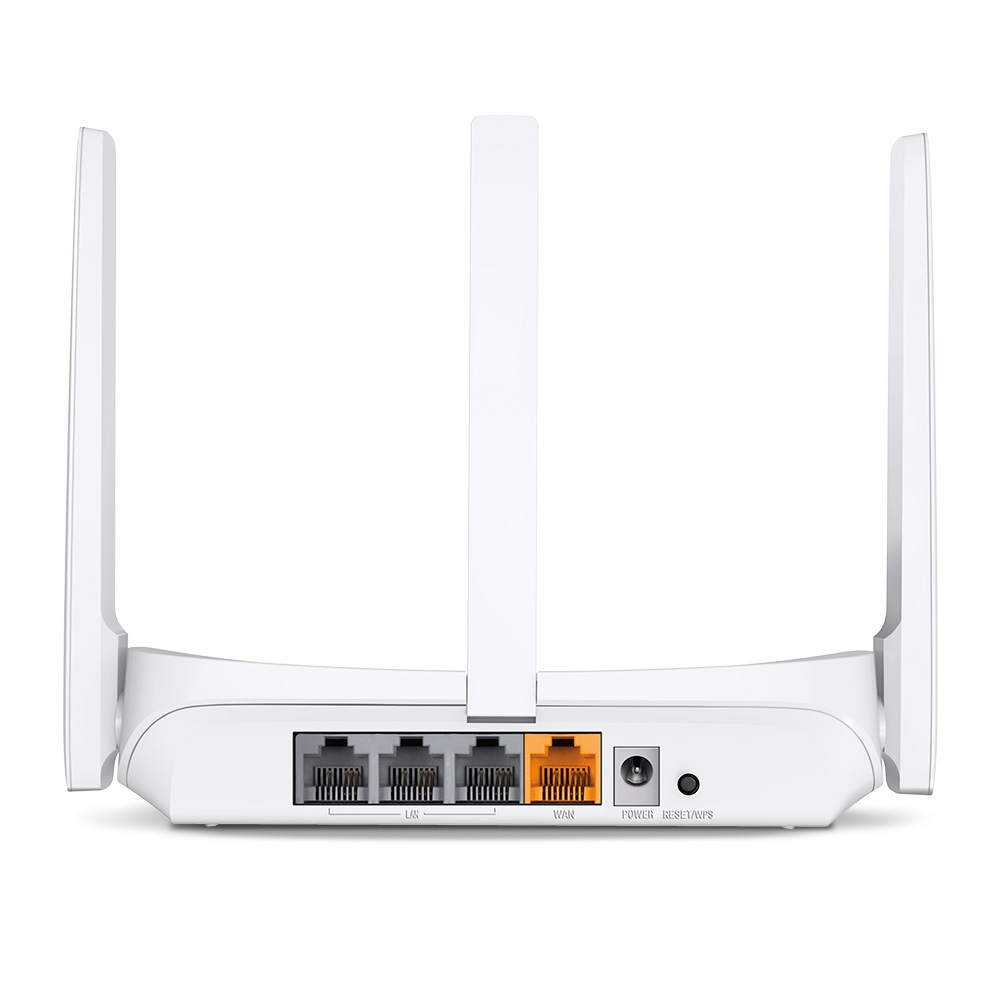

Mercusys MW306R 300 Mbps Multi-Mode Wireless N Router

MERCUSYS MW306R 300 MBPS MULTI-MODE  WIRELESS N ROUTER PRODUCT DESCRIPTION:

• Stable Wi-Fi for Your Daily Use — MW306R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps

• Broader Coverage — Equipped with three high gain external antennas to deliver strong Wi-Fi signals to every corner of your home

• Multi-Mode — Four modes in one device to satisfy all application scenarios

• Easy installation — Intuitive webpage guides you through the setup process in minutes

• Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access

• IPTV and IPv6 Supported

Excellent WiFi Performance

MW306R provides fast, stable WiFi for all your connected devices. Wireless speeds of up to 300 Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.

Broader Coverage

With its three 5 dBi antennas that work together to boost its reception and signal sensitivity, MW306R provides broader wireless coverage to every corner of your home.

Parental Controls

Supervise children or staff by limiting access. Manage when and how connected devices can access the internet.

Guest Network

Allow guests to join your Wi-Fi network while protecting your privacy. Making sharing easy and maintaining security.

QoS

Priorities devices to get better
performance when needed.

Easy Installation

No need for complicated configuration. Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes.

SPECIFICATION:

Wireless

Wireless Standards

IEEE 802.11 b/g/n

Frequency

2.4-2.5 GHz

Signal Rate

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity

• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER

Transmission Power

<20dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control
Local Management
Remote Management

DHCP

DHCP Server, DHCP Client List

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Guest Network

2.4GHz Guest Network

Hardware

Dimensions (W X D X H)

5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)

Button

RESET/WPS Button

External Power Supply

5V/0.6A

Antenna Type

3* Fixed Antennas

Ethernet Ports

1* 10/100Mbps WAN Port,
3* 10/100Mbps LAN Ports

Others

Package Contents

Wi-Fi N Router (MW306R)
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
