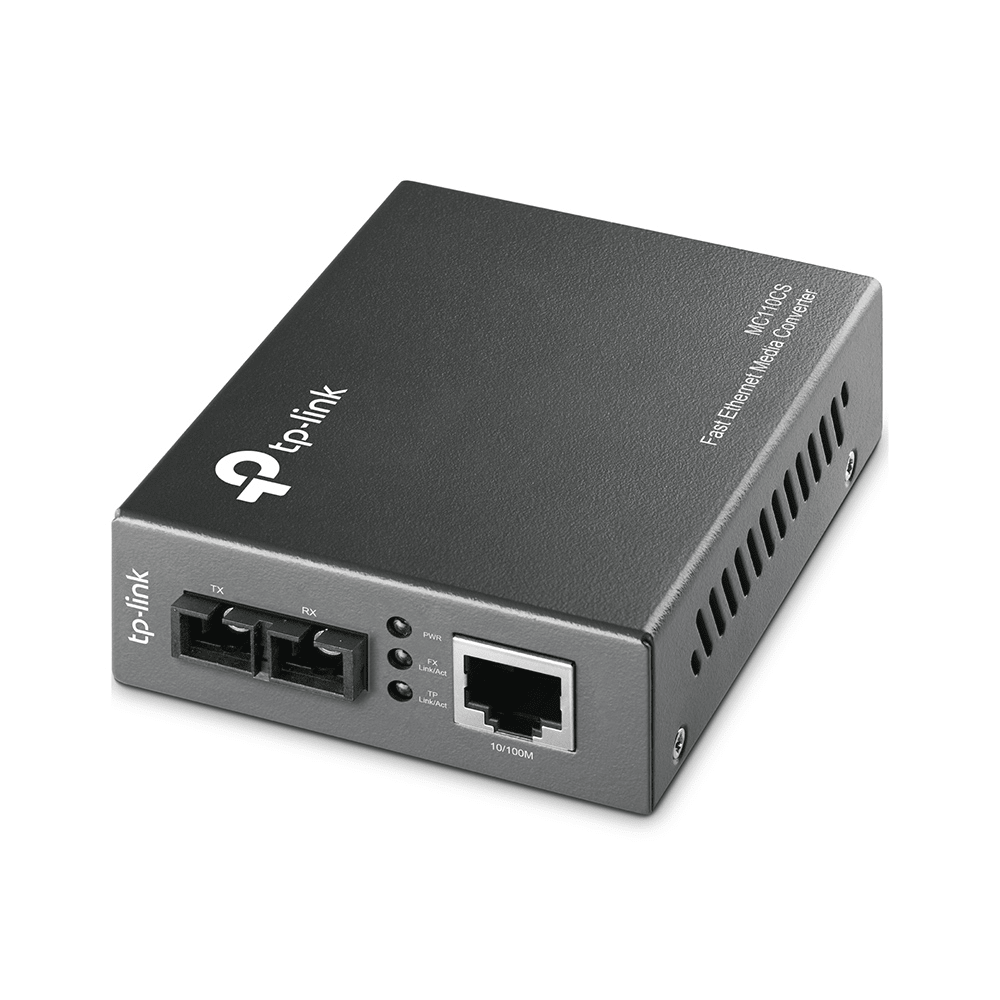

Tp-Link MC110CS 10/100Mbps Media Converter

TP-LINK MC110CS 10/100MBPS MEDIA CONVERTER PRODUCT DESCRIPTION:

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

SPECIFICATION:

MEDIA CONVERTER & MODULE

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km

Ports

1 100M SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 10BASE-T

UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-T

UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network Media 100BASE-FX

Single-mode Fiber

LED Indicators

PWR, Link/Act

Dimensions (W*D*H)

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

External power supply

Max Power Consumption

2.4W

Safety & Emission

FCC, CE, RoHS

Package Contents

• Media Converter MC110CS

• Power Adapter
• Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
