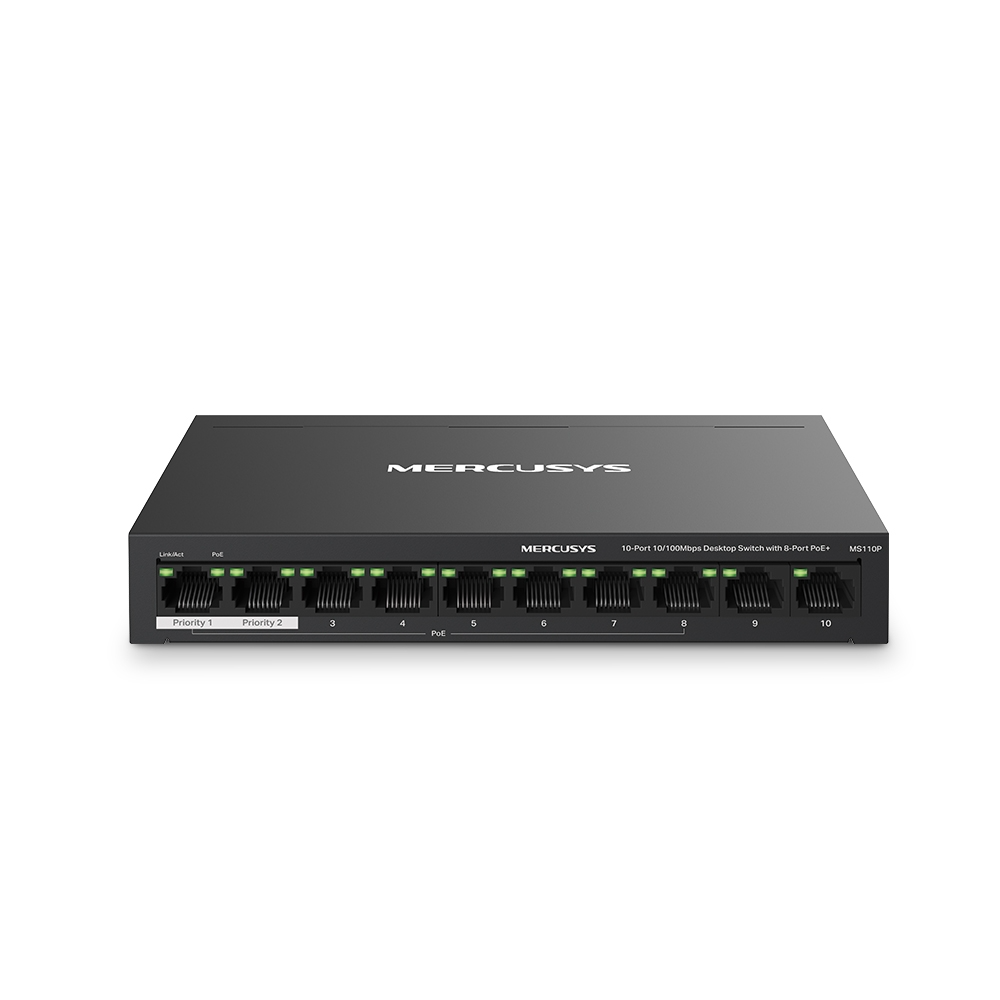

TP Link MS110P 10-Port Desktop Switch

TP LINK MS110P 10-PORT DESKTOP SWITCH PRODUCT DESCRIPTION:

Power over Ethernet: Two Cables in One

• No Fuss

  No need for electricians; simplify installation and deployment.

• Cost-Efficiency

  Getting rid of extra cables and power adapters will save money on infrastructure.

• Flexibility

  Deployment in complex situations is made possible by more placement possibilities.

• Power Management

  Improves power usage while intelligently protecting your gadgets from power surges.

• IEEE 802.3af/at

  PoE ports compliant with the 802.3af/at Powered Devices.

Traffic Separation

With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

PoE Auto Recovery

The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

Plug and Play

MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Silent

MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

SPECIFICATION:

Hardware

Dimensions

171*98*27 mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W

Interfaces

10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

 2 KB

Mac Address Table

2K

Max Power Consumption

2.96W（220 V / 50 Hz, no PD connected）

77.52W（220 V / 50 Hz, with 65W PD connected）

Max Power Consumption

10.064 BTH/h （no PD connected)

263.568 BTH/h（with 65W PD connected）

Others

Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
