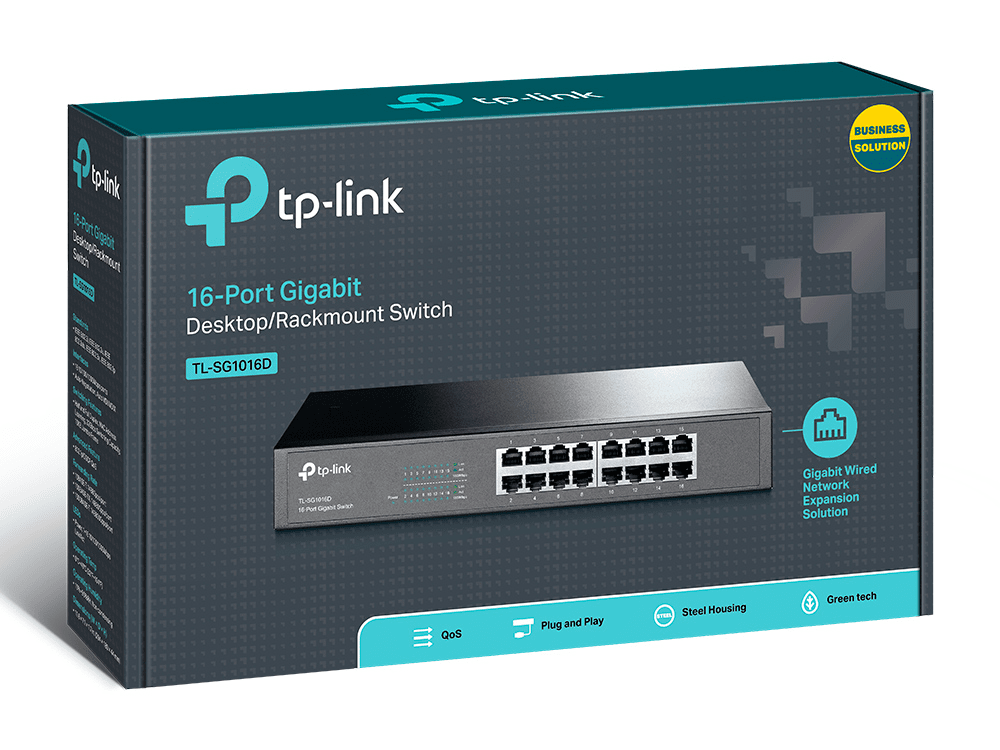

TP-Link TL-SG1016D 16-Port Gigabit Desktop Switch

TP-LINK TL-SG1016D 16-PORT GIGABIT DESKTOP SWITCH PRODUCT DESCRIPTION:

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

SPECIFICATION:

HARDWARE FEATURES

Standards and Protocols

 IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Power Consumption

Maximum: 9.26W (220V/50Hz)

Dimensions ( W x D x H )

11.6*7.1*1.7 in. (294*180*44 mm)

Max Power Consumption

9.95W(220V/50Hz)

Max Heat Dissipation

33.93BTU/h

PERFORMANCE

Switching Capacity

32Gbps

Packet Forwarding Rate

23.8Mpps

MAC Address Table

8K

Advanced Functions

Isolation Mode: Ports 1-14
Loop Prevention: Ports 1-16

Jumbo Frame

10KB

Green Technology

Yes

Transfer Method

Store-and-Forward

OTHERS

Certification

FCC, RoHs

Package Contents

16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
