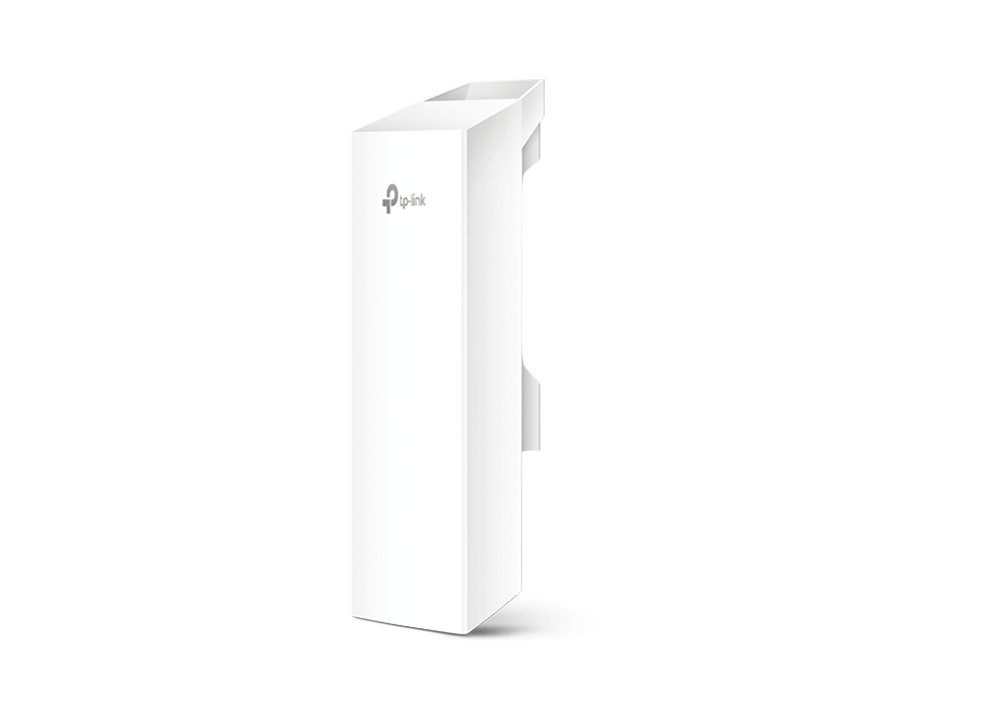

TP-LINK CPE220 2.4GHz Outdoor CPE

Adjustable transmission power from 0 to 30dBm/1000mw

System-level optimizations for more than 13km long-range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity, and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

A passive PoE Adapter supports up to 60 meters (200 feet) of Power over Ethernet deployment and allows the device to be reset remotely.

Point-to-Multi-Point Connections

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost-effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise-level chipsets, high gain antennas and high-quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Qualcomm Atheros enterprise 560MHz CPU

High power Tx and high sensitivity Rx radio front-end design

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna

Dedicated metal reflector ensures higher gain and lower noise interference

V-Pol Co-polarization PatternH-Pol Co-polarization Pattern

13km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long-distance wireless data transmission over 13km+, tested in the field.

13km+

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

A User-friendly web-based management system allows professionals to do more specific configurations of 2.4GHz 300Mbps 12dBi Outdoor CPE CPE220.

SPECIFICATION:

HARDWARE FEATURES

Processor

Qualcomm Atheros 560MHz CPU, MIPS 24Kc

Memory

64MB DDR2 RAM, 8MB Flash

Interface

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button

Power Supply

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Power Consumption

10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions

( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)

Antenna Type

Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to the datasheet

Protection

15KV ESD Protection
6KV Lightning Protection

Enclosure

Outdoor ASA-stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol

TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency

2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.

Transmission Power

30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations

Pharos MAXtream TDMA Technology

802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management

Discovery and Remote Management via the Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools

Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations

Optimized IGMP Snooping/Proxy for multicast applications
Hardware watchdog

OTHERS

Certification

CE, FCC, RoHS, IPX5

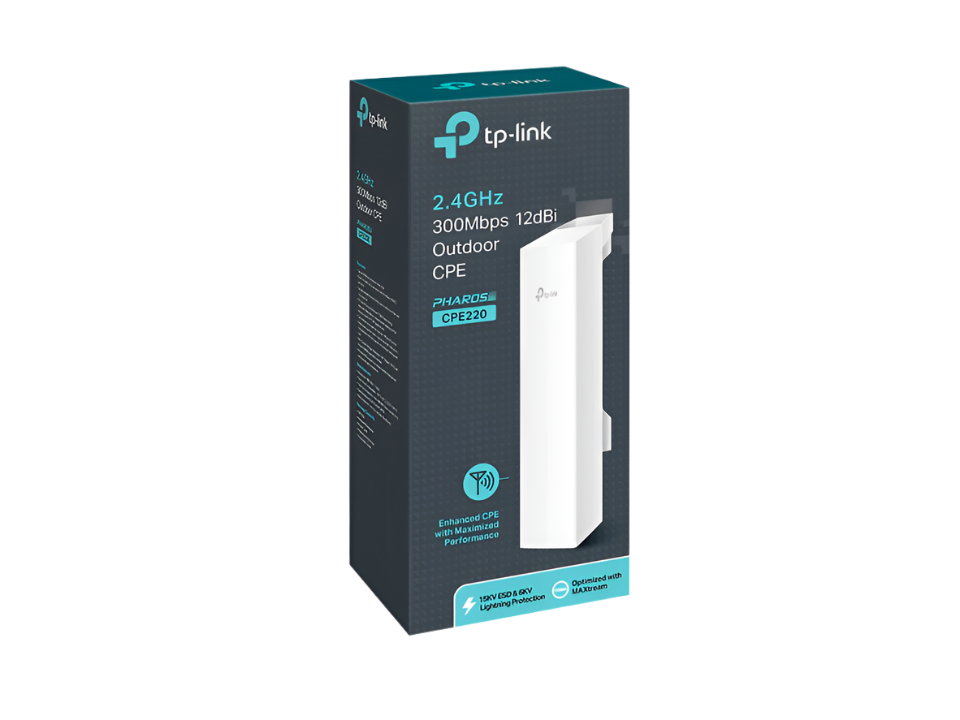

Package Contents

Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX, or Linux.
Note: We recommend you use one of the following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment

Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
