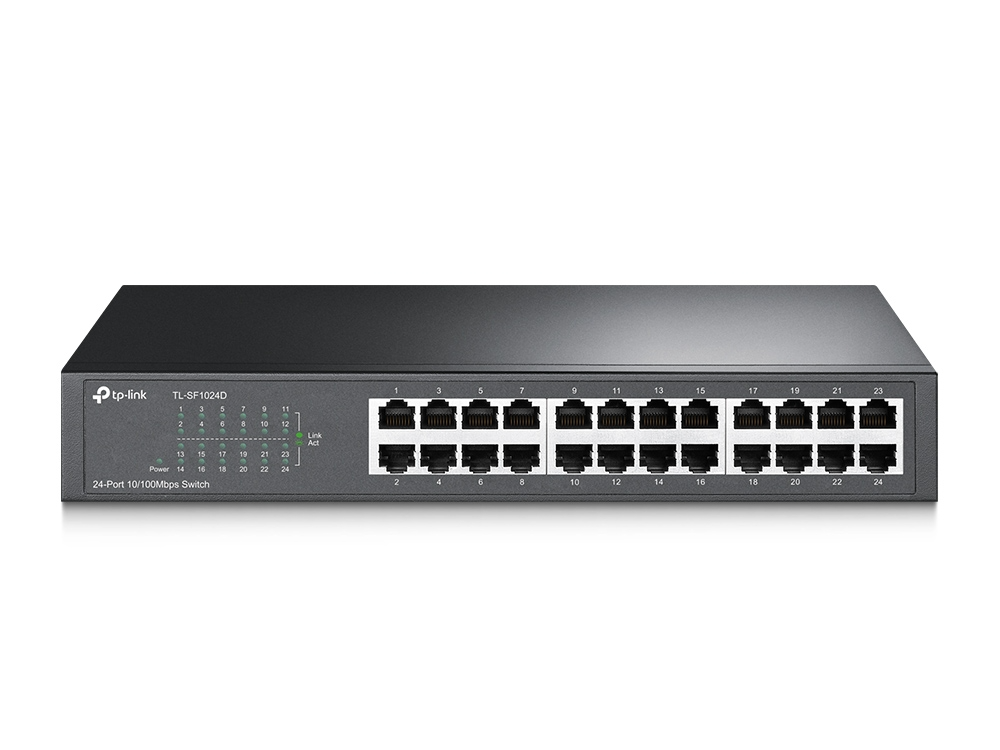

TP-Link TL-SF1024D 24-Port 10/100M Switch

TP-LINK TL-SF1024D 24-PORT 10/100M SWITCH PRODUCT DESCRIPTION:

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or dedicated uplink ports. IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode manage the traffic congestion and make TL-SF1016D works reliably.

TP-LINK Green Technology

This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

SPECIFICATION:

HARDWARE FEATURES

Interface

16× 10/100 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

No

External Power Supply

External Power Adapter(Output: 5.0VDC / 0.6A)

Mac Address Table

2K

Dimensions ( W x D x H )

7.9 x 5.6 x 1.6 in.
(200 x 142 x 40 mm)

Max Power Consumption

3.2W

Max Heat Dissipation

11.0 BTU/h

SOFTWARE FEATURES

Transfer Method

Store and Forward

Advanced Functions

Green Technology,
802.3X Flow Control,

OTHERS

Certification

FCC, CE, RoHs

Package Contents

16-Port 10/100Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~60℃ (-40℉~140℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
