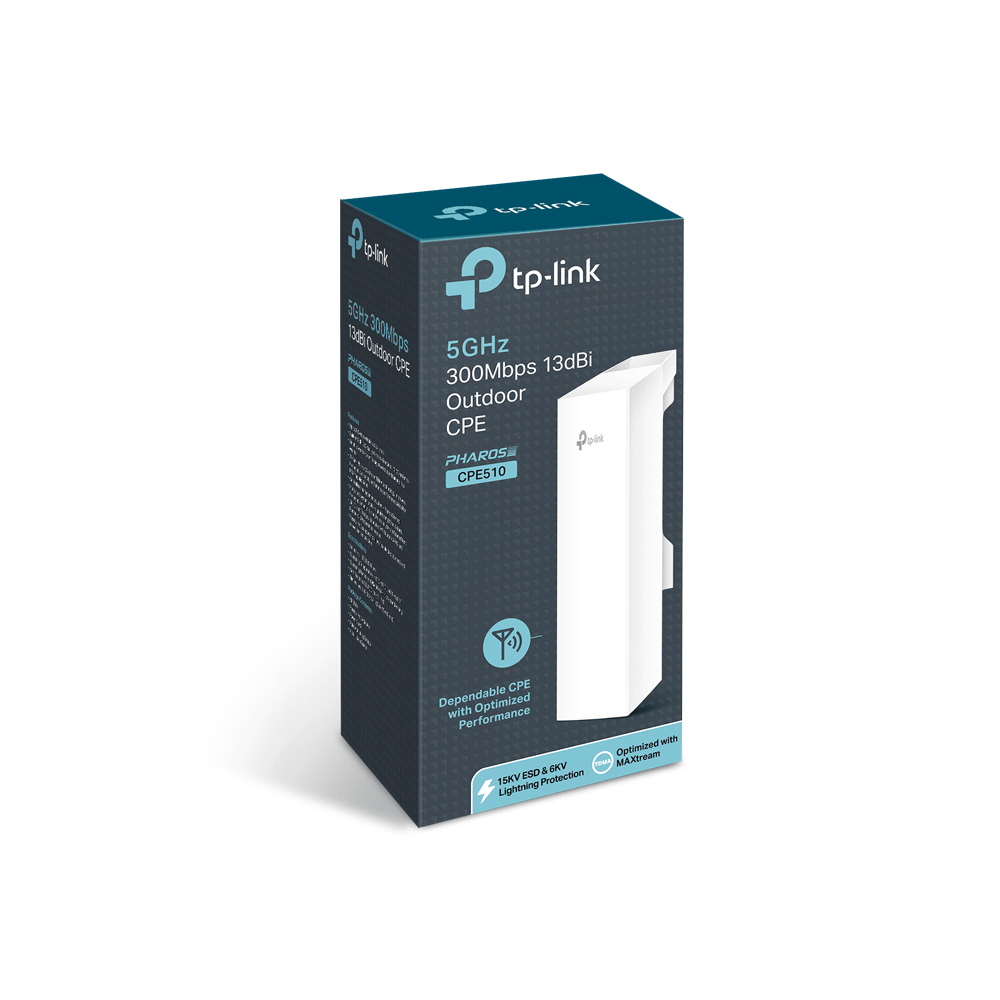

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

TP-LINK CPE510 5GHz 300MBPS 13DBI OUTDOOR CPE PRODUCT DESCRIPTION:

Built-in 13dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 26dBm/200mw

System-level optimizations for more than 15km long range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

15km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

Pharos Control – Centralized Management System

CPE510 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

SPECIFICATION:

HARDWARE FEATURES

Processor

Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

Memory

64MB DDR2 RAM, 8MB Flash

Interface

1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button

Power Supply

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC Power Consumption 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H )

8.8 x 3.1 x 2.4 in

Antenna Type

Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane)

Protection

15KV ESD Protection
6KV Lightning Protection

Enclosure

Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n (with Pharos MAXtream disabled)

Proprietary Protocol

TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency

5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power

23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations

Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools

Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations

Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES

Dimensions(W x D x H)

4.3 x 2.2 x 1.3 in

Interfaces

1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Button

Remote Reset Button

Power Status LEDs

Green

Input

100-240VAC, 50/60Hz

Output

24VDC, 1A Max +4, 5pins; -7, 8pins.  (Support up to 60m Power over Ethernet)

Efficiency

>80%

Certifications

CE/FCC

OTHERS

Certification

FCC, RoHS, IPX5

Package Contents

Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

System Requirements

Google Chrome, Safari, and Firefox browsers for web GUI management

Environment

Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
