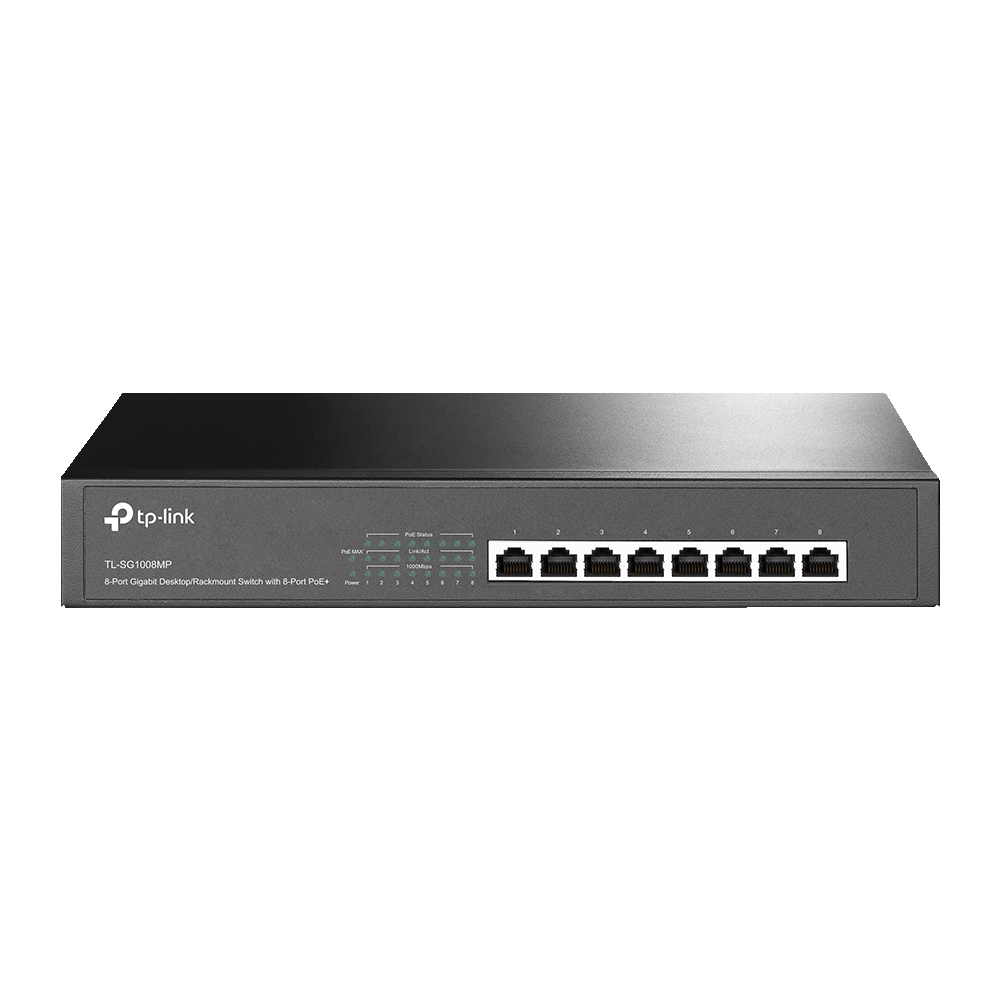

TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Switch

TP-LINK TL-SG1008MP 8-PORT GIGABIT POE+ SWITCH PRODUCT DESCRIPTION:

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 153W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save the power consumption, making it an eco-friendly solution for your business network.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 153W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 153W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 153W limit., This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

SPECIFICATION:

HARDWARE FEATURES

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

1

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Packet Forwarding Rate

11.904 Mpps

PoE+ Ports(RJ45)

Standard: 802.3af/at compliant
PoE+ Ports: 8 Ports
Power Supply: 153W

Mac Address Table

4K

Buffer Size

1.5Mbits

Jumbo Frame

16 KB

Switching Capacity

16Gbps

Dimensions ( W x D x H )

11.6*7.1*1.7 in. (294*180*44 mm)

Mounting

Desktop/Rack Mountable

Max Power Consumption

8.57W(220V/50Hz. no PD connected)
173.65W(110V/60Hz. with 153W PD connected)

Max Heat Dissipation

29.22BTU/h(no PD connected)

592.15BTU/h(with 153W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Transfer Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Environment

Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
