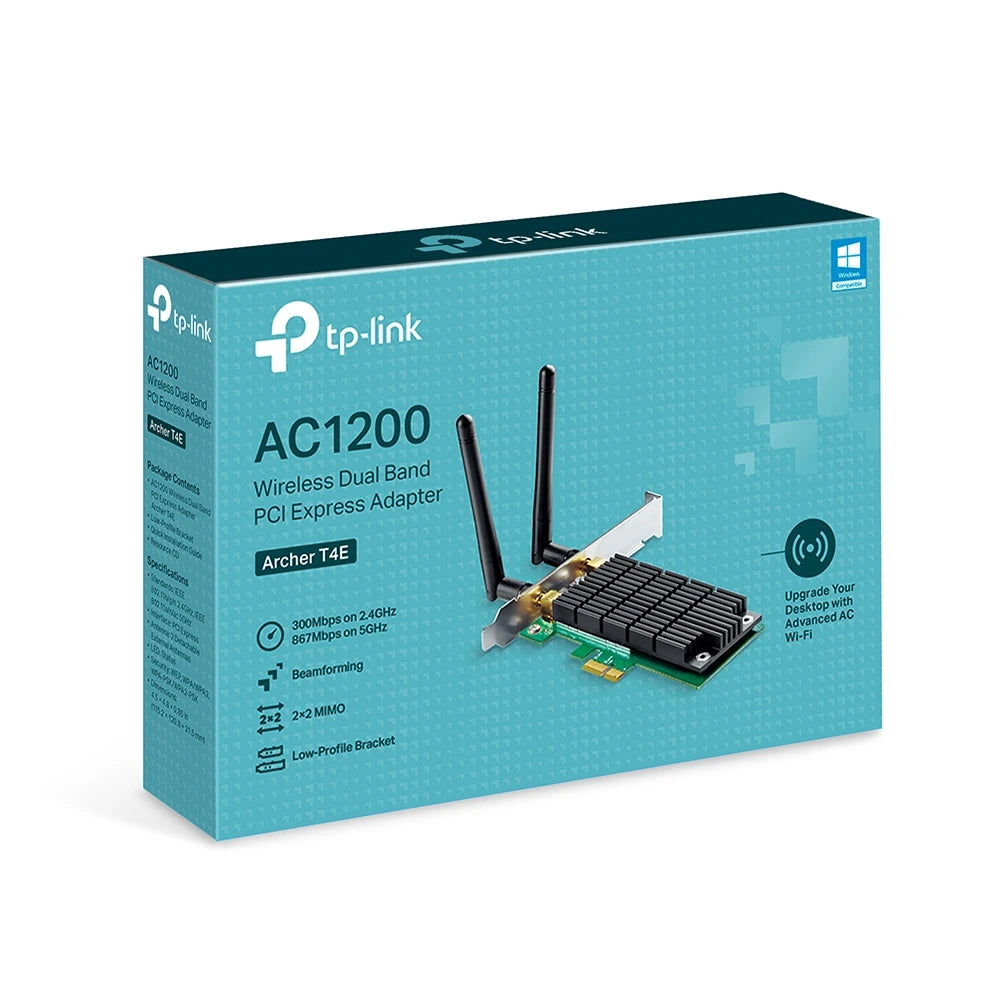

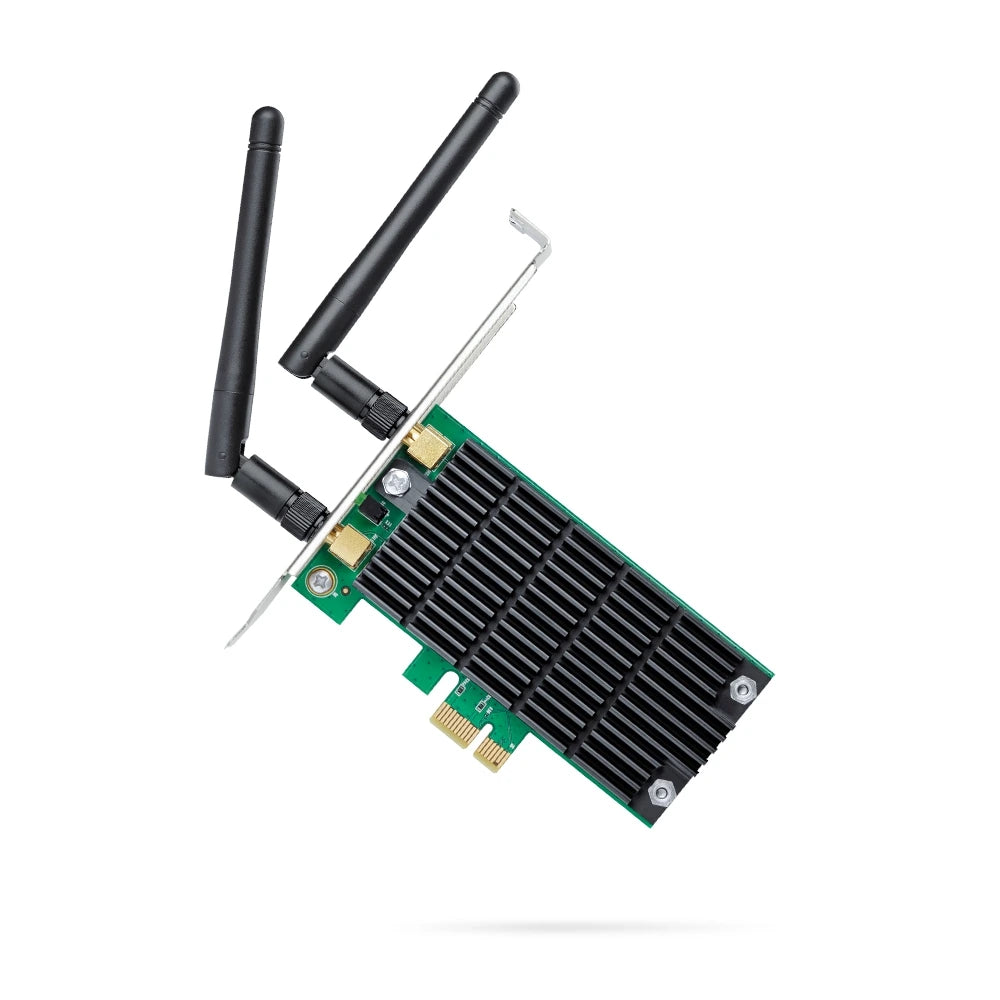

TP-Link Archer T4E AC1200 Wi-Fi Bluetooth PCIe Adapter

TP-Link Archer T4E AC1200 Wi-Fi Bluetooth PCIe Adapter

802.11ac - Dual Band Wi-Fi for Faster Connections

TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming

Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability

A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal

Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Specification:

HARDWARE FEATURES
Interface	PCI Express
Dimensions ( W x D x H )	4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna	2 Dual Band Detachable Antennas

Bluetooth Features
Standards and Protocols	Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
Interface	F_USB 2.0

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz
Signal Rate	5 GHz 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Reception Sensitivity	5 GHz : 11ac HT80: -59.5 dBm 11ac HT40: -63 dBm 11ac HT20: -68 dBm 11n HT40: -70 dBm 11n HT20: -73 dBm 11a 54Mbps: -76 dBm 11a 6Mbps: -92 dBm 2.4GHz : 11n HT40: -67.5 dBm 11n HT20: -70 dBm 11g 54Mbps: -72 dBm 11b 11Mbps: -86.5 dBm
Wireless Modes	Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Transmission Power	5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS
Certification	CE, FCC, RoHS
Package Content	AC1200 Wireless Dual Band PCI Express Adapter Archer T4E Low-Profile Bracket Quick Installation Guide Resource CD
System Requirements	Windows 11/10/8.1/8/7/XP (32/64bit)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
