TP-LINK TL-RE305 AC1200 Wi-Fi RANGE EXTENDER PRODUCT DESCRIPTION:
High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
Wi-Fi keeps Strongest for Unlimited Moving
With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single Wi-Fi name for seamless whole home coverage. Just connect RE305 to a OneMeshTM router. Always enjoy the strongest Wi-Fi when you’re walking around with no need to search around for a stable connection.
Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh™ resolves your dilemma.
SPECIFICATION:
Working Modes
Range Extender/Access Point
Plug Type EU, UK, US
Ports 1 x 10/100Mbps Ethernet Port (RJ45)
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 7.3W（max power consumption）
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 External Antennas
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
300Mbps at 2.4GHz, 867Mbps at 5GHz
Working Modes
Range Extender/Access Point
Reception Sensitivity
5GHz：
11a 6Mbps:-91dBm
11a 54Mbps: -74dBm
11ac HT20 mcs8: -68dBm
11ac HT40 mcs9: -63dBm
11ac HT80 mcs9: -59dBm
2.4GHz
11g 54Mbps: -79dBm
11n HT20 mcs7: -77dBm
11n HT40 mcs7: -74dBm
Wireless Functions
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage
Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power
2.4G<17dBm， 5G<17dBm

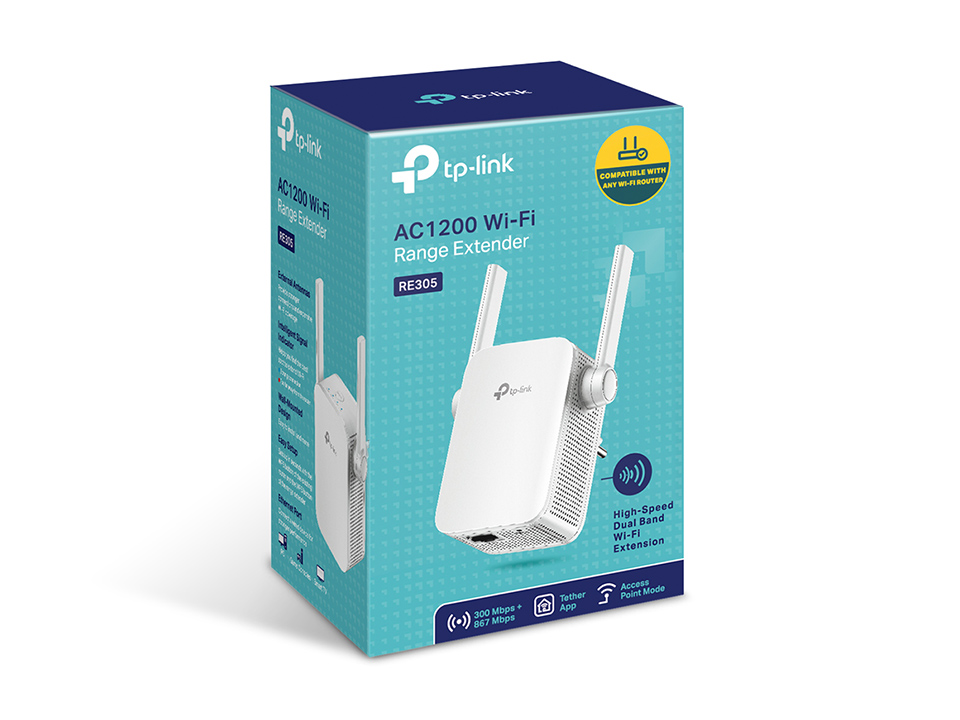

AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide Box
