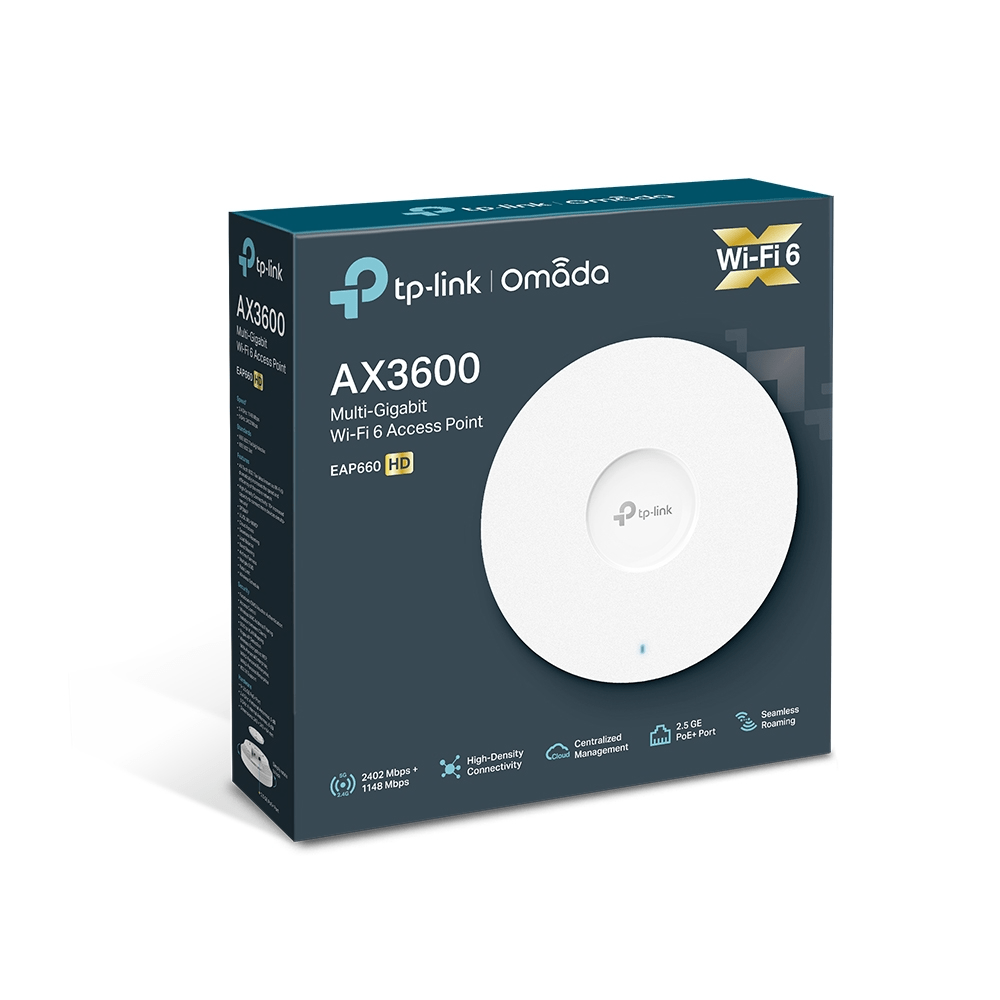

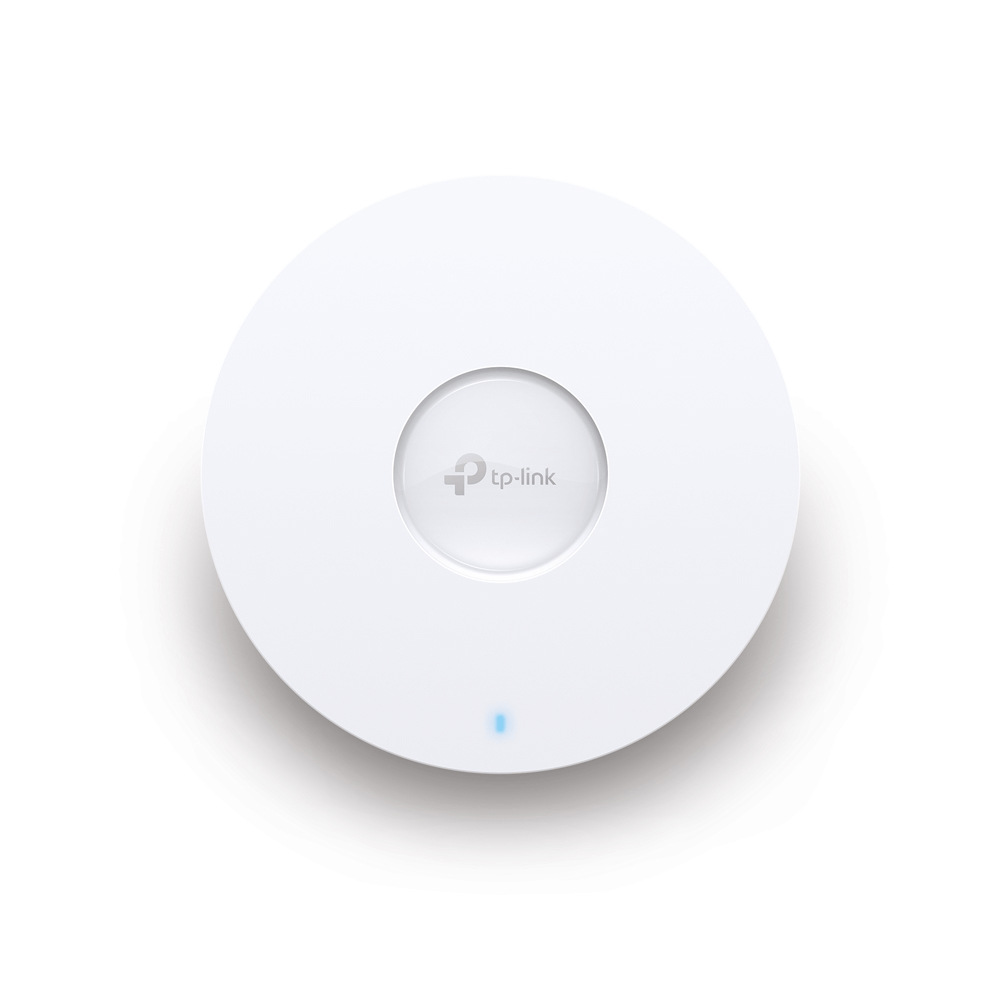

TP Link EAP660 HD AX3600 Wireless Access Point

TP LINK EAP660 HD AX3600 WIRELESS ACCESS POINT PRODUCT DESCRIPTION:

High-Density Connectivity with 4× Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

SPECIFICATION:

HARDWARE FEATURES

Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button Reset

Power Supply

• 802.3at PoE
• 12 V DC

Power Consumption

• EU: 18.5 W
• US: 21.5 W

Dimensions ( W x D x H )

9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type

Internal

Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi

Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps

Wireless Functions

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming^△
• Omada Mesh^△
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication^△

• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes.Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes.Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

Package Contents

• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
