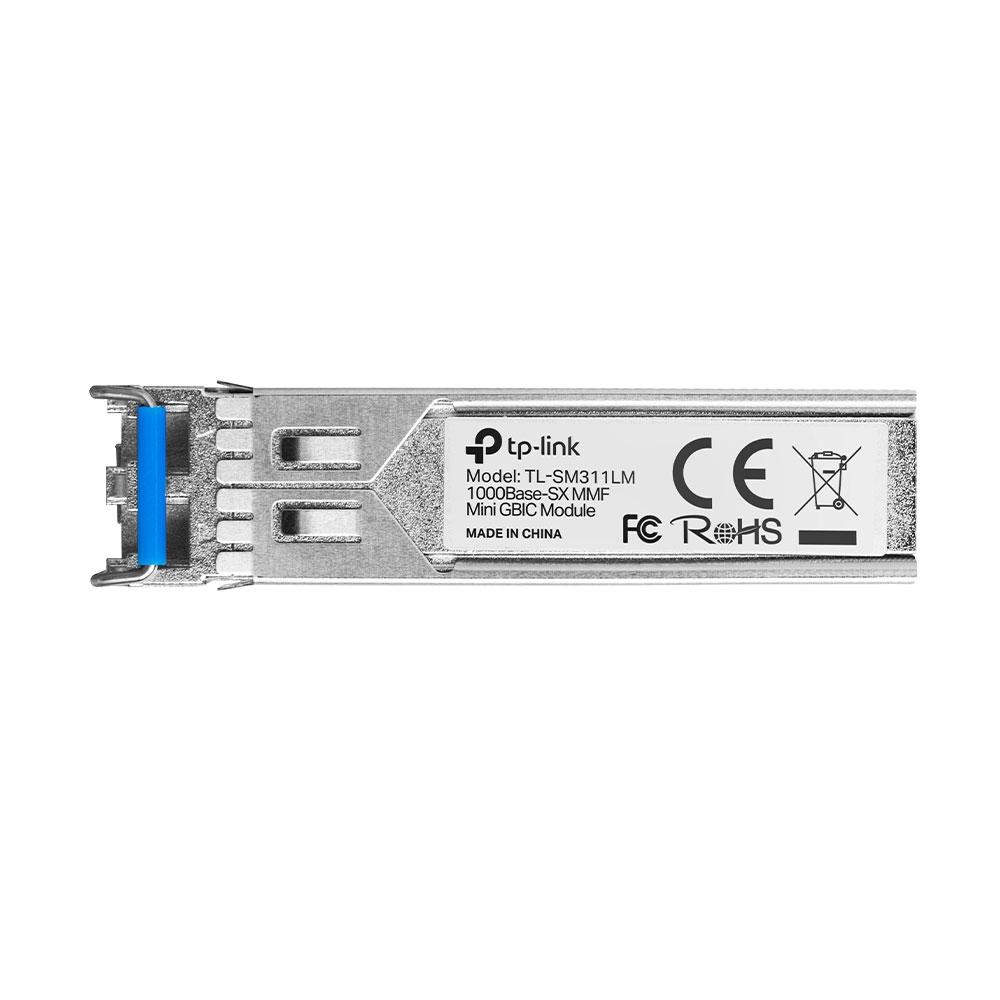

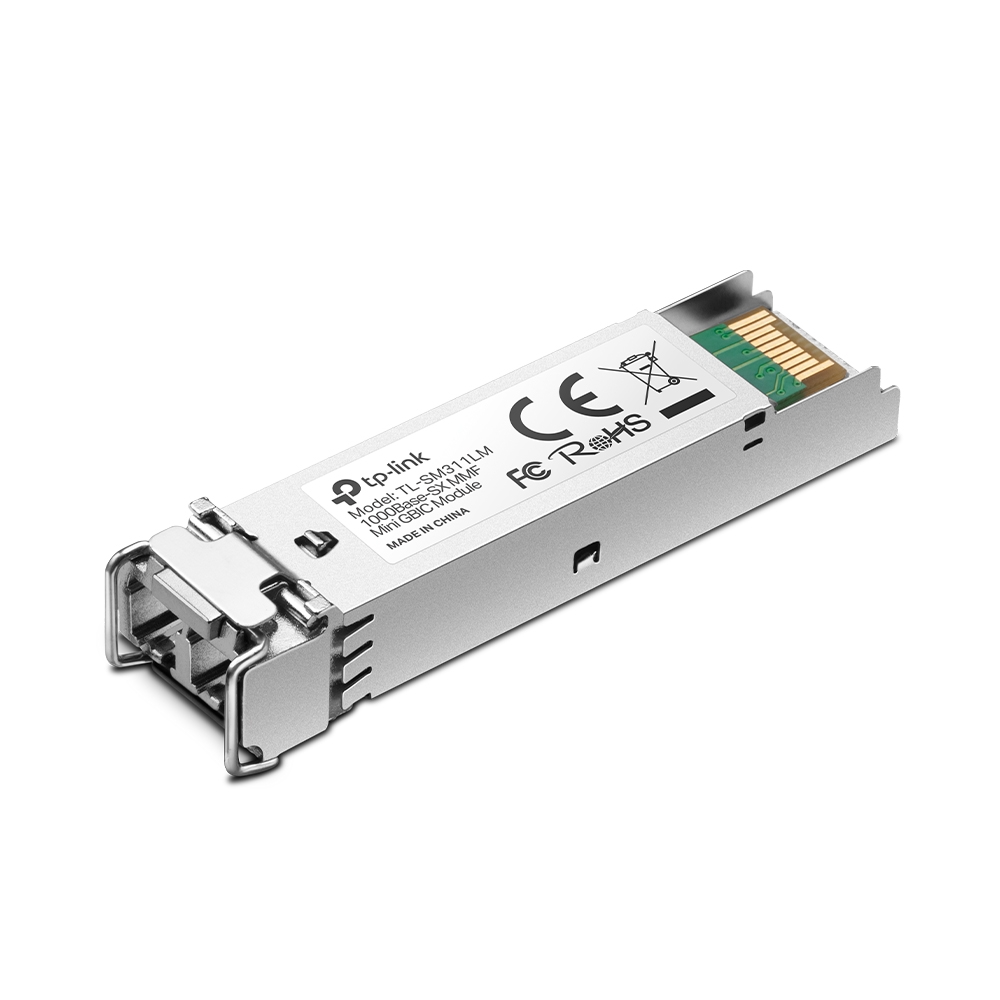

TP-Link TL-SM311LM Gigabit Multi-mode SFP Module

TP-LINK TL-SM311LM GIGABIT MULTI-MODE SFP MODULE PRODUCT DESCRIPTION:

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

SPECIFICATION:

PACKAGE CONTENTS

Package Contents

• SFP Module TL-SM311LM
• Installation Guide

MEDIA CONVERTER & MODULE

Standards and Protocols

IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length

850nm

Dimensions (W*D*H)

2.2*0.5*0.5 in (55.4*13.7*12.9 mm)

Power Supply

3.3V

Safety & Emission

FCC, CE

Cabel

Multi-mode Fiber

Fiber Type

50/125μm or 62.5/125μm Multi-mode

Max. Cable Length

550m

Data Rate

1.25Gbps

Port Type

LC/UPC

Environment

Operating Temperature: 0℃~70℃ (32℉~158℉)

Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
