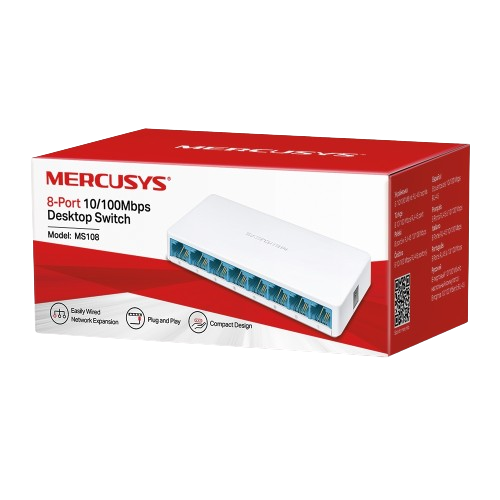

TP Link MS108 8-Port 10/100Mbps Desktop Switch

TP LINK MS108 8-PORT 10/100MBPS DESKTOP SWITCH PRODUCT DESCRIPTION:

Sleek, Ultra-Compact Design

About the same size as a smartphone, the MS108 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.

Expand Ethernet Network

With eight 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS108 is flexible and is fully compatible with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for home, small office, and even dormitory environments.

Ease of Use

Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance

With Half/Full Duplex and MAC Address Learning Technology, the MS108 provides up to 1.6Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS108 will provide reliable, uninterrupted connections for years to come.

SPECIFICATION:

Software

Transfer Method

Store and Forward

Hardware

Dimensions (W X D X H)

127 x 60.2 x 22 mm

Interfaces

8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply

5 V / 0.6 A

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD

Data Rates

10/100Mbps at Half Duplex
20/200Mbps at Full Duplex

Buffer Capacity

768 Kb

Jumbo Frame

2 KB

LED

Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

Others

Package Contents

• 8-Port 10/100Mbps Desktop Switch(MS108)
• Power Adapter
• Quick Installation Guide
