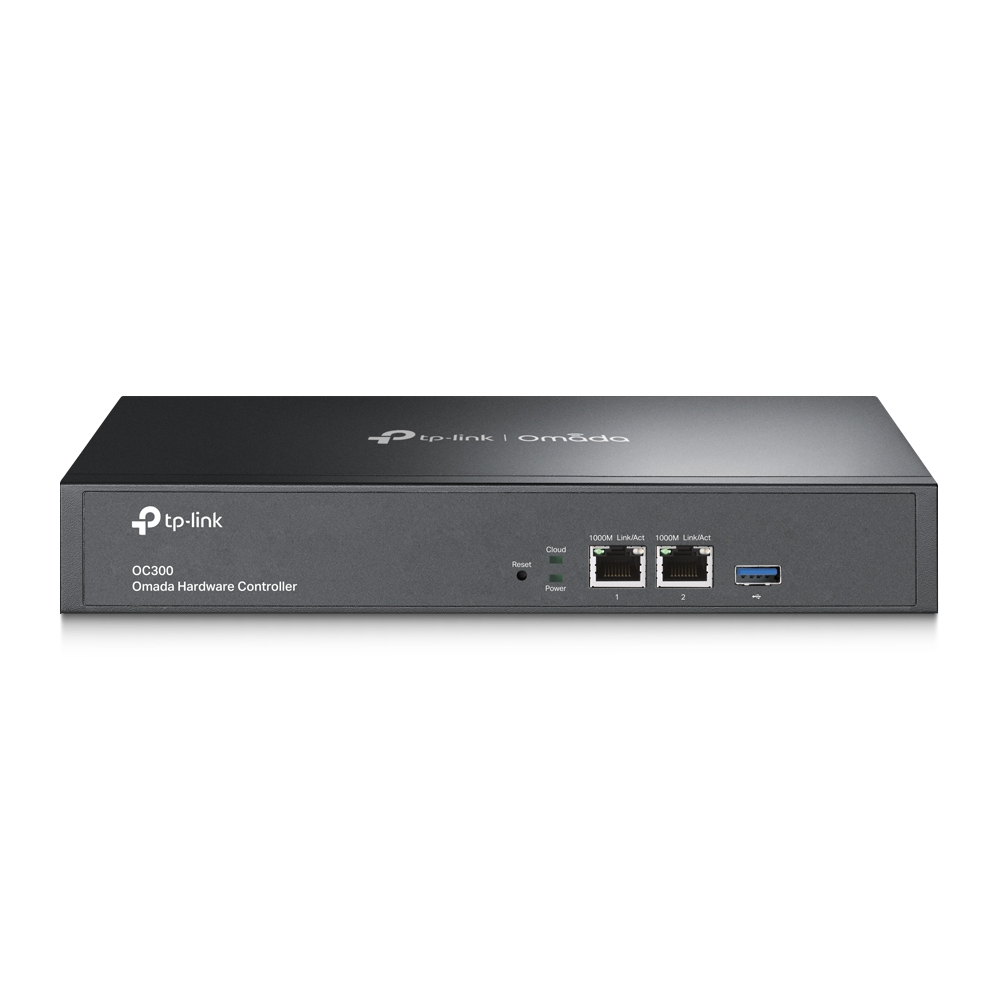

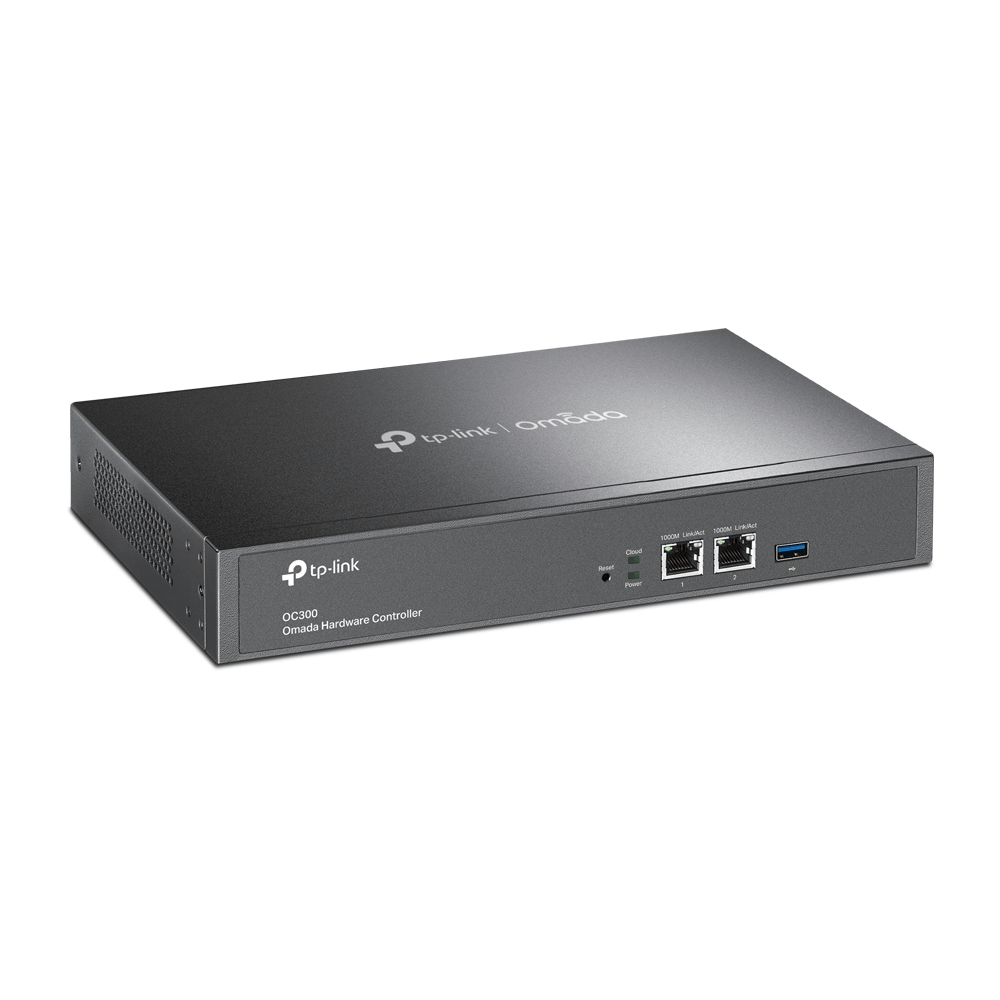

TP-Link OC300 Omada Hardware Controller

TP-LINK OC300 OMADA HARDWARE CONTROLLER PRODUCT DESCRIPTION:

Centralized Management for
Access Points, Switches, and Gateways

OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of access points, switches, and gateways—all controlled from a single interface.

Hybrid Cloud for Maximum Convenience

Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

Industry-Leading Hardware Design

Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.

Easy and Intelligent Network Monitoring

The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

Batch Management, Multi-Site Management, and Remote Firmware Updates

Improve network maintenance without needing to configure on-site or manage devices one by one.

Powerful Scheduling

Maintain your network easily with more agile and effective processing. No manual tasks required.

SPECIFICATION:

HARDWARE FEATURES

Interface

• 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port

Power Supply

100–240 V~50/60 Hz, 0.6 A

Dimensions

11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

MANAGEMENT

Omada App

Yes

Centralized Management

• Up to 500 Omada access points, JetStream switches, and SafeStream routers*
• Up to 15,000 clients

Cloud Access

Yes

L3 Management

Yes

Multi-site Management

Yes

Management Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• Omada Hardware Controller OC300
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit

System Requirements

Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment

• Operating Temperature: 0–50 ℃ (32–122 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
