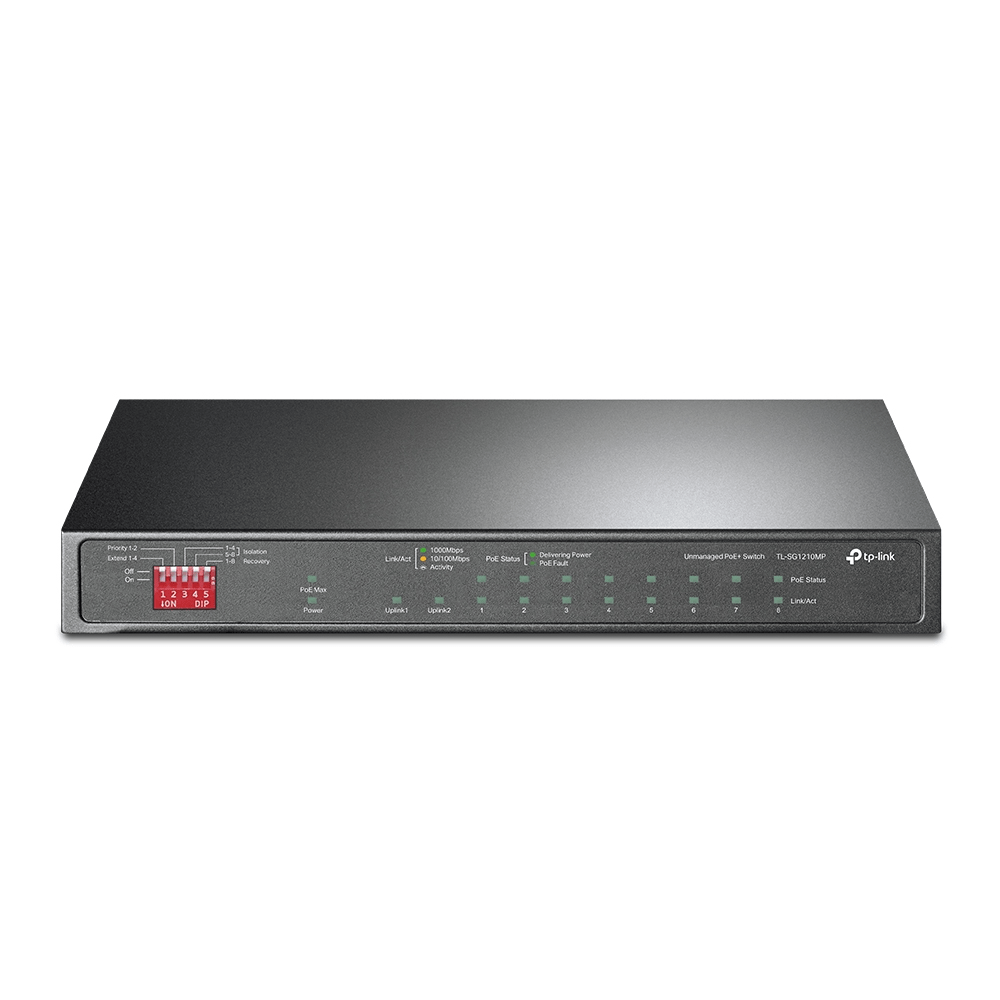

TP LINK TL-SG1210MP Gigabit Desktop Switch

Regular price: Rs.28,050.00
Regular price
Sale price: Rs.28,050.00
Unit price: per

Product variants

Description

TP LINK TL-SG1210MP GIGABIT DESKTOP SWITCH PRODUCT DESCRIPTION:

TP-Link TL-SG1210MP is an unmanaged switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Keep Your Network Smooth and Safe with Abundant Functions

With extend mode, the PoE transmission distance reaches up to 250 m^**—perfect for IP Camera deployment in large areas.

Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2.

Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Durable Metal Casing

The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.

Intelligent Power Management

When total power consumption exceeds 123 W, intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

SPECIFICATION:

HARDWARE FEATURES

Interface

• 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5VDC / 2.43A)

Packet Forwarding Rate

14.88 Mpps

PoE Ports (RJ45)

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 W

Mac Address Table

4K

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max Power Consumption

• 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation

• 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

• TL-SG1210MP
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
