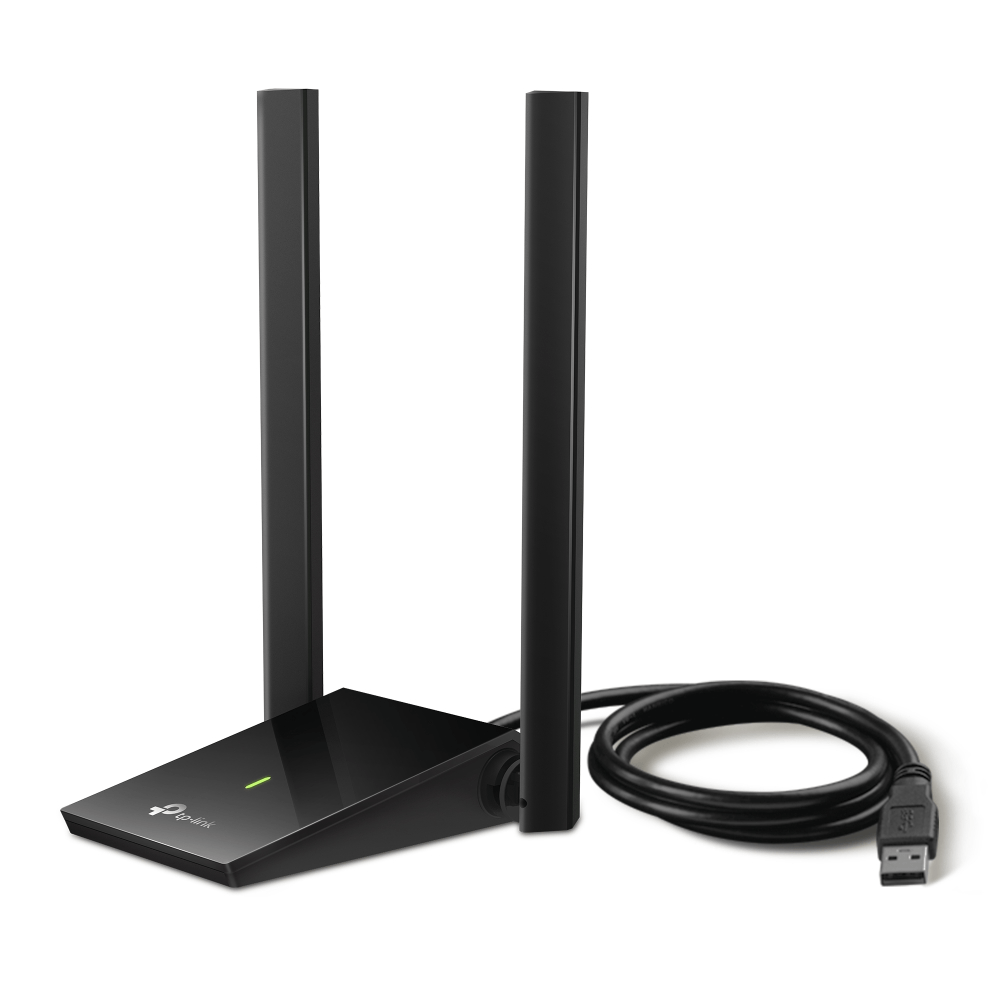

TP Link Archer T4U Plus Wireless USB Adapter

TP LINK ARCHER T4U PLUS WIRELESS USB ADAPTER PRODUCT DESCRIPTION:

Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard

Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity

Dual High-Gain antennas – Improved range, signal quality and transmission performance

Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0

Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception

Supports the Latest Operating Systems — Fully compatible with Windows 11/10/8.1/8/7

High-Speed, Dual Band WiFi

The Archer T4U Plus grants your PC access to 802.11ac technology while receiving WiFi signals on two separate bands, boosting speeds up to 1.2 Gbps (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). This means better networking experience for all your online needs. Choose the 2.4 GHz band for web browsing, email, and social media, or switch to 5 GHz for gaming, HD streaming, and large file downloads.

Dual High-Gain Antennas, Broader Coverage

Two powerful 5 dBi high-gain external antennas ensure stronger signal transmission and reception between web devices and your router even from farther away or across multiple walls and floors. Enjoy stable wireless connections and faster speeds without WiFi drops and lag.

A Great Match for Faster Speeds

Connect the newest hardware with USB 3.0. USB 3.0 is specially suited for the 802.11ac WiFi protocol and utilizes its transfer rate for better connections. Take full advantage of USB 3.0 and 802.11ac WiFi for optimized network performance.

Boosted Throughput with MU-MIMO

MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of your entire network when using a compatible MU-MIMO router.

Adjustable, Multi-Directional Antenna

Rotate and adjust the antenna 180° for the best reception in different environments.

Flexible Design, Easy Setup

The adapter’s desktop-style design and 1.0 m USB cable help you find the best spot for network reception. Enjoy an easy and desktop-friendly setup for flexible deployment.

Specifications:

Interface

USB 3.0

LED

Status

Dimensions ( W x D x H )

84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in)

Antenna

2× External 5 dBi High Gain Antennas

WIRELESS FEATURES:

Wireless Standards

IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Signal Rate

5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -65dBm
11ac VHT20: -69dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -72dBm
11g 54Mbps: -75dBm
11b 11Mbps: -87dBm

Transmit Power

5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

OTHERS:

Certification

FCC, CE, RoHS

Package Contents

AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus
Quick Installation Guide
Resource CD
1-meter USB 3.0 Cable

System Requirements

Supported operating systems include Windows 10/8.1/8/7,
macOS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
