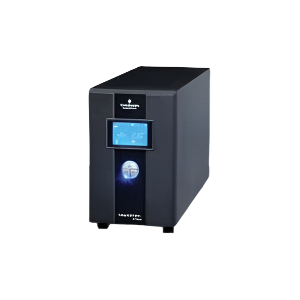

Vertiv GXT-6000MTPLUSC230 UPS

VERTIV GXT-6000MTPLUS C230 UPS PRODUCT DESCRIPTION:

Key Features:

Capacity: 6KVA/5400W
Series: GXT-MT+ CX
Power Factor: 0.8
Tower Design
Standard Backup Functionality

Reliable Power Protection:

The Vertiv Liebert GXT-6000MTPLUSC230 UPS provides exceptional power protection with its high capacity of 6KVA/5400W. It safeguards your critical systems, ensuring smooth operations even during power fluctuations.

Efficient and Space-Saving:

With a power factor of 0.8, this UPS offers more usable power, allowing you to connect additional loads while optimizing space and reducing costs.

Standard Backup Functionality:

Featuring standard backup functionality, the Vertiv Liebert GXT-6000MTPLUSC230 UPS ensures your systems stay powered during outages, providing valuable time to safely shut down or continue operations.

SPECIFICATION:

Model	GXT-6000MTPLUSC230
Capacity	6KVA/5400W
Series	GXT-MT+ CX
Power Factor	0.8
Form Factor	Tower
Backup Function	Standard



Input:

Voltage Range
– Low Line Transfer	180VAC/160VAC/140VAC/120VAC ± 5%
	(Based on load percentage)
– Low Line Comeback	195VAC/175VAC/155VAC/135VAC ± 5%
High Line Transfer	300 VAC ± 5%
High Line Comeback	290 VAC ± 5%
– Frequency Range	40Hz ~ 70 Hz
Phase	Single Phase with ground
Power Factor	≥ 0.99 @ nominal voltage (input voltage)



Output:

Output Voltage	208/220/230/240VAC
Output Power Factor	0.8
AC Voltage Regulation	±1% (Battery Mode)
Frequency Range	47-53 Hz or 57 – 63 Hz (Synchronized Range)
Frequency Range (Battery Mode)	50 Hz ± 0.5% or 60Hz ±0.5%



Overload:

– Ambient Temp. <35°C
– 105%~110%	Shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal
– 110%~130%	Shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal
– ≥ 130%	Shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal



Battery:

Battery Type	12 V / 9 AH
Battery Numbers	6
Recharge Time	4 hours recover to 90% capacity (typical)
Charging Voltage	82.1 VDC ± 1%



Physical:

Dimensions (D × W × H, mm)	421 × 190 × 318
Net Weight	27.6 kgs



Environment:

Operation Humidity	20–90% RH @ 0–40°C (non-condensing)
Noise Level	< 45dBA @ 1 Meter



Management:

Smart RS-232 or USB	Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
Optional SNMP	Power management from SNMP manager and web browser
