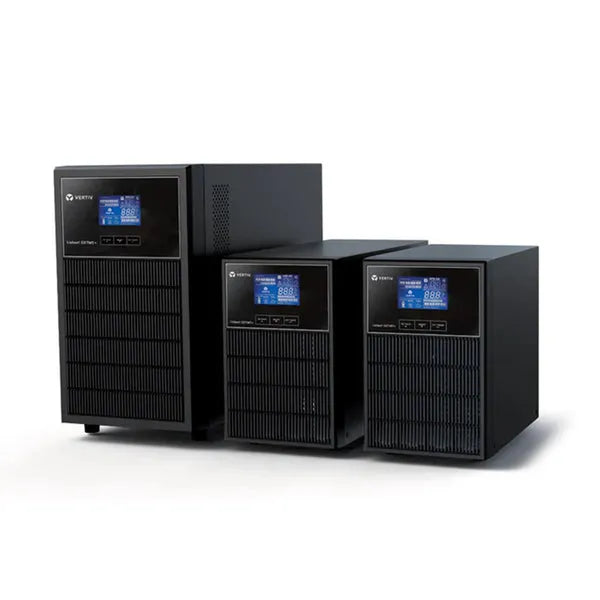

• Vertiv GXT MT+CX-1 KVA/900W 230V UPS
1 1

Vertiv GXT MT+CX-1 KVA/900W 230V UPS

Rs.107,000.00
Rs.107,000.00

Description

VERTIV GXT MT+CX-1 KVA/900W 230V UPS PRODUCT DESCRIPTION:

In this ever-changing dynamic world, the days of basic power protection are passé. In today’s Internet-centric era, business continuity is vital and companies cannot afford downtime for their critical systems or waste time recovering the systems after a disruption. Therefore, there is a need for a power-integrated UPS, which offers flexible protection for various applications areas such as data networks, compact data center rooms, voice networks, cellular sites, process automation systems, and micro-control rooms among other edge applications.

Our solution

Liebert® GXT MT+ CX is a sleek, high frequency, double-conversion UPS with wide input voltage/frequency and better output voltage regulation, which makes it an ideal choice for harsh environments, especially those facing concerns related to unstable mains output and high load impact. This advanced UPS provides higher availability while offering intelligent monitoring and network management functions.

The ultimate level of engineering and dynamics that have gone beyond the development of this next-generation UPS make it a high performance system with proven reliability, giving you ultimate peace of mind.

The Liebert® GXT MT+ CX UPS facilitates reliable & uninterrupted power even in stringent conditions with integrated input power factor correction, low THDi, and advanced frequency regulation in a compact footprint.

Our solution

IGBT-based Rectifier

True on-line double-conversion efficiency (up to 90%) with DSP Control Technology for high Performance & reliability

Active Input Power Factor Correction 0.99; 0.9 Output Power Factor

Ultra-wide Input Voltage window: 280VAC; works well in harsh conditions and suitable for very poor quality power grid

Generator-compatible with a wide Input Frequency range (40Hz–70Hz)

Built-in 50/60 Hz automatic frequency converter and a configurable output voltage (200, 208, 220, 230, up to 240 Vac)

Technical Specifications (Standard Model)

Model GXT-1000MTPLUSC230

Capacity 1000 VA / 900 W

Input

Low Line Transfer 180VAC/160VAC/140VAC/120VAC±5%

(Ambient Temp.<35°C) ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)

Voltage Range

Low Line Comeback 195VAC/175VAC/155VAC/135VAC ± 5 %

(Ambient Temp.<35°C)
( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)

High Line Transfer  300 VAC ± 5 %

High Line Comeback  290 VAC ± 5 %

Frequency Range 40Hz ~ 70 Hz

Phase Single Phase with ground

Power Factor � 0.99 @ nominal voltage (input voltage)

Output

Output Voltage 208/220/230/240VAC

Output Power Factor 0.9

AC Voltage Regulation ±1% (Battery Mode)

Frequency Range 47-53 Hz or 57 – 63 Hz ( Synchronized Range)

Frequency Range (Battery Mode) 50 Hz ± 0.5% or 60Hz ±0.5%

Overload

Ambient Temp.<35°C
105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal �130%:UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal

Current Crest Ratio Current Crest Ratio

Harmonic Distortion � 3 % THD (linear load); � 6 % THD (non-linear load)

Transfer Time

AC Mode to Batt. Mode Zero

Inverter to Bypass 4 ms (Typical)

Waveform (Battery Mode) Pure Sinewave

Efficiency

AC Mode 88%

Battery Mode 83%

Battery

Battery Type 12 V / 9 AH

Battery Numbers 2

Recharge Time 4 hours recover to 90% capacity (typical)

Charging Voltage 27.4 VDC ± 1%

Physical

Dimension, D × W × H, mm 282 × 145 × 220

Net Weight (kgs) 9.8

Environment

Operation Humidity 20–90% RH @ 0–40°C (non-condensing)

Noise Level Less than 45dBA @ 1 Meter

Management

Smart RS-232 or USB Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC

Optional SNMP Power management from SNMP manager and web browser
