Packed with 3,800 ANSI Lumens of brightness and a 22,000:1 high contrast ratio, PG603X is equipped to produce bright images in any environment, including rooms with high ambient light.
PG603X is capable of projecting 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.
Optimized Audio
SonicMode uses an embedded DSP chip to optimize sound performance for 3 different usage scenarios.
Standard Mode: A preset mode that offers the best sound levels for general use.
Speech Mode: A preset mode that enhances the sound of spoken words, making it ideal for projecting speeches and lectures.
Entertainment Mode: a preset mode that is fine-tuned with more bass and richer mid-high frequencies; ideal for music and movies.
Mobile Screen Mirroring
Content from smart devices can be mirrored instantly via USB cable connection for delivering presentations directly from your own device.
*Android 5.0 above devices need to first download the vPresenter Pro app to perform screen mirroring; audio cannot be output from projector when being mirrored.
Easy Image Correction
Horizontal and Vertical Keystone correction and 4 corner adjustment features eliminate crooked and distorted images for a perfectly proportioned picture every time.
8 Control Codes from a Single Remote
This projector remote control can be assigned to 8 different remote control codes for effortless projector selection, configuration and operation during lessons or meeting. The remote can also be used to control specific projectors individually by adjusting the remote’s control code.
Automatic Sleep Timer
PG603X’s Sleep Timer function allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.
Reduced Energy Consumption
When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.
SPECIFICATIONS:
-
Projection system: 0.55" XGA
Native Resolution: 1024x768
DC type: DC3
Brightness: 3800 ANSI Lumens
Contrast Ratio with SuperEco mode: 22000:1
Display Color: 1.07 Billion Colors
Light Source: Lamp
Light source life (Nor/SuperEco): 5000/15000
Lamp Watt: 190W
Lens: F=2.56-2.68, f=22-24.1 mm
Projection Offset: 120%+/-5%
Throw Ratio: 1.96-2.15
Image size: 30" - 300"
Throw Distance: 1.19m-13.11m(100" @3.98m)
Keystone: H:+/-20° , V:+/-30°
Optical Zoom: 1.1x
Audible Noise (Eco): 27dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

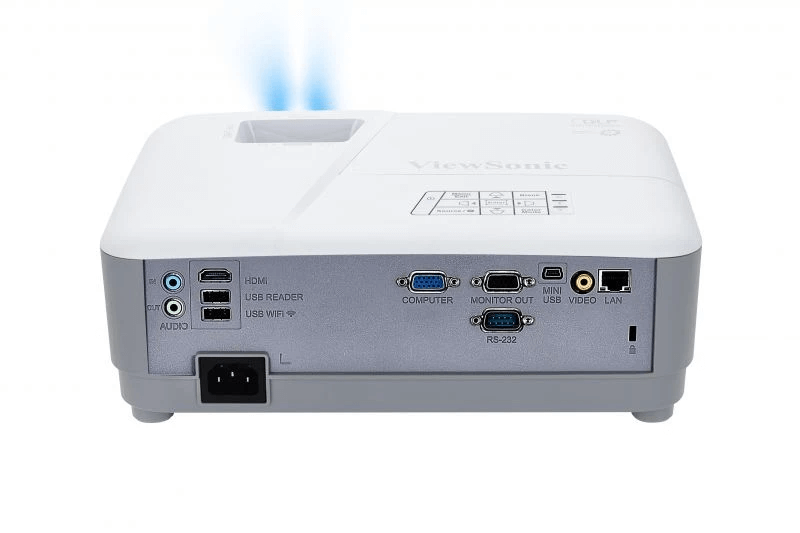

Input
Computer in (share with component): 1
Composite: 1
Audio-in (3.5mm): 1
HDMI (HDCP): 1 (Back)
(HDMI 1.4/ HDCP 1.4)
Output
Monitor out: 1
Audio out (3.5mm): 1
Speaker: 10W
USB type A (Power): 2 (1 x reader 5V/0.5A & 1 x optional wifi dongle)
