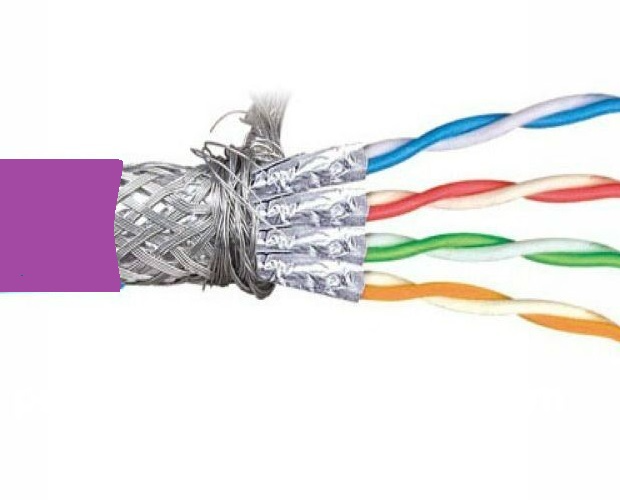

Vivanco VPCASFA4LSP3 Cat-6A 4 Pair S/FTP Cable

VIVANCO VPCASFA4LSP3 CAT-6A 4 PAIR S/FTP CABLE PRODUCT DESCRIPTION:

- Network Cable with anti-interference, aluminum armor in pairs CAT.6A S/FTP 10Gbps, LSZH standard, purple, 305 meters/roll.

-        CAT.6A S/FTP Shielded Cable, LSZH, Purple, 305m/Reel

-        Part number: VPCASFA4LSP3

Compliance

-        ISO/IEC 11801

-        ANSI/TIA/EIA-568-C.2

-        IEC 61156-5

Construction

-        S/FTP

-        0.596 mm (23 AWG) solid bare copper

-        8.4mm max jacket diameter

Features and Benefits

-        Frequency 1-500MHZ, extended to 600MHZ

-        Suitable for 10 Gigabit, 10GBase-T, Ethernet application

-        Aluminum foil and overall metal braid shielding reduce NEXT and ANEXT

Electrical Performance

Direct current resistance of each conductor

9.38Ω /100m

Operating Capacitance

5.6nF/100m

Unbalanced capacitance

330pF/100m

Impedance (ohms)

1-100MHz 100±15%

100-250MHz 100±22%

250-500MHz 100±25%

NVP

70%

Delay deviation

44ns

Physical Performance

Items

Specification

Tensile

110N

Min. Bend Radius

10 times of max jacket diameter

Installation Temperature

0 to 50 ( +32 to 122°F)

Storage Temperature

-20 to 75 ( -4 to 167°F)

Operating Temperature

-20 to 60 ( -4 to 140°F)
