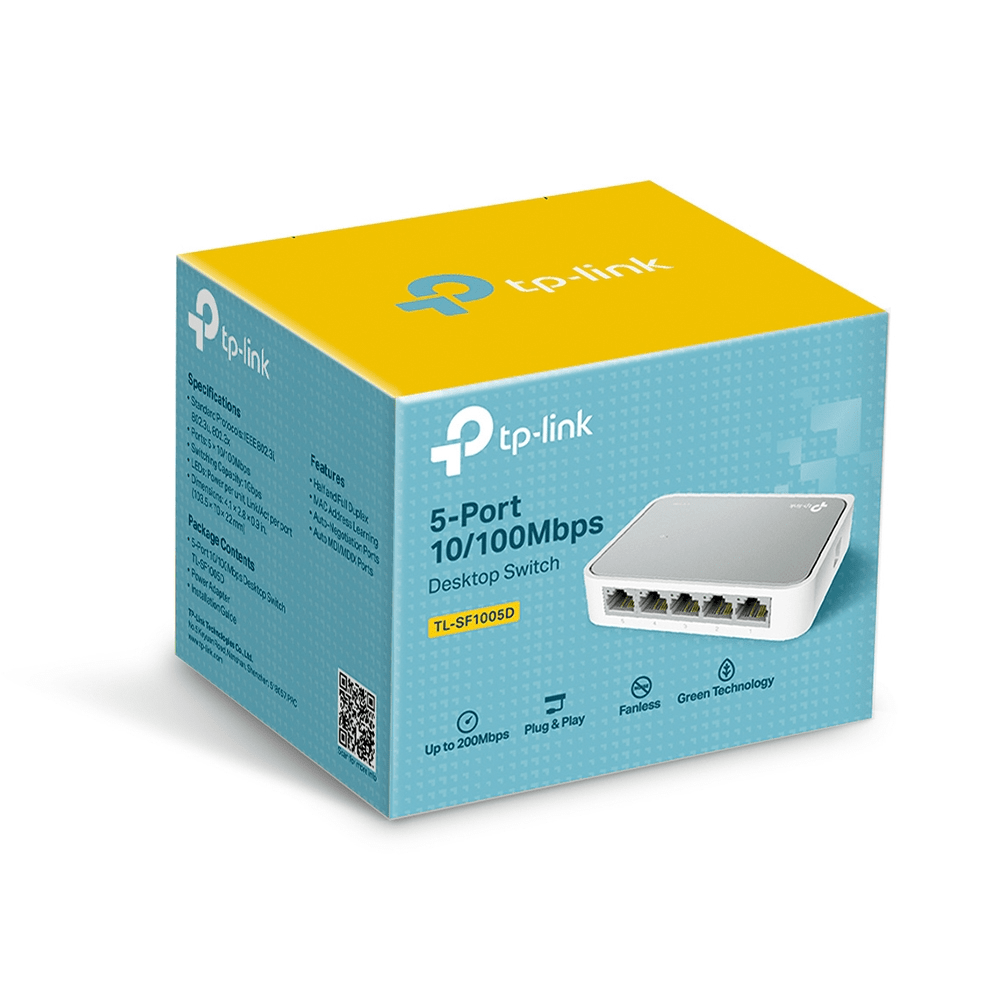

TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch

TP-LINK TL-SF1005D 5-PORT 10/100MBPS DESKTOP SWITCH PRODUCT DESCRIPTION:

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

High Performance

TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Easy to Use

The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

SPECIFICATION:

HARDWARE FEATURES

Interface

5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

Fanless

External Power Supply

External Power Adapter(Output: 5.0VDC / 0.6A)

Dimensions ( W x D x H )

4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)

Max Power Consumption

1.87W(220V/50Hz)

Max Heat Dissipation

6.38BTU/h

SOFTWARE FEATURES

Transfer Method

Store and Forward

Advanced Functions

Green Technology
802.3X Flow Control, Back Pressure

OTHERS

Certification

FCC, CE, RoHs

Package Contents

5-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~60℃ (-40℉~140℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

OTHERS
Certification	FCC, CE, RoHs
Package Contents	5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
